Phosphorus Export Risk Matrix: Example 1

Example 1

Low flow-connectivity

Low risk due to fertilizer application

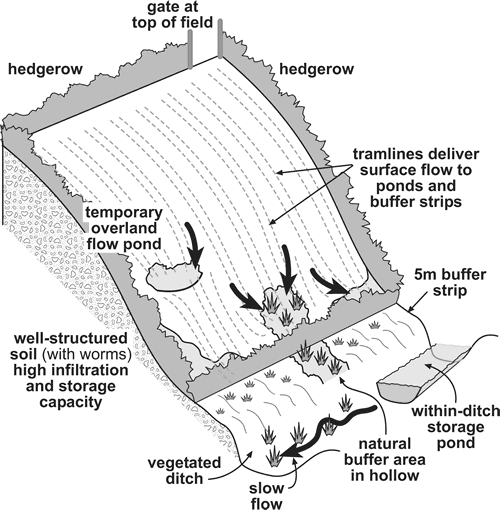

The diagram below shows some aspects of a field which can contribute to a low risk, such as overland flow ponds, buffer strips and within ditch storage ponds.


medium risk medium risk medium-high risk high risk high risk high risk high risk very high risk very high risk very high risk
medium risk medium risk medium risk medium-high risk high risk high risk high risk high risk very high risk very high risk
medium risk medium risk medium risk medium risk medium-high risk high risk high risk high risk high risk very high risk
medium risk medium risk medium risk medium risk medium risk medium-high risk high risk high risk high risk high risk
medium risk medium risk medium risk medium risk medium risk medium risk medium-high risk high risk high risk high risk
low-medium risk medium risk medium risk medium risk medium risk medium risk medium risk medium-high risk high risk high risk
low-medium risk low-medium risk medium risk medium risk medium risk medium risk medium risk medium risk medium-high risk high risk
low risk low risk low-medium risk medium risk medium risk medium risk medium risk medium risk medium risk medium-high risk
very low risk low risk low risk low-medium risk medium risk medium risk medium risk medium risk medium risk medium risk
very low risk very low risk low risk low-medium risk low-medium risk medium risk medium risk medium risk medium risk medium risk



Low flow-connectivity, low risk due to fertiliser application
