Nicos G. Pavlidis
Optimal Projections for Clustering (OPC) is an open source MATLAB and Octave library that implements clustering methods that seek the optimal low dimensional subspace to identify (or separate) clusters. This is a recognised issue in high-dimensional data clustering [12], but also occurs whenever irrelevant features, or correlations among subsets of features exist, or when clusters are defined in different subspaces. These characteristics cause the spatial data structure to become less informative about the underlying clusters. To correctly identify clusters algorithms need to simultaneously solve two interrelated problems, (i) identify the subspace in which clusters can be distinguished, and (ii) associate observations to clusters [12].
OPC focuses on methods which seek low dimensional subspaces that are optimal with respect to a given clustering objective. This distinguishes the methods in this library from generic dimensionality reduction techniques, which determine the low dimensional embedding by optimising an objective function that is not related to any clustering criterion [27]. Consequently, although generic dimensionality reduction techniques have been successfully applied in numerous clustering applications, they are not guaranteed to find a subspace that preserves (or reveals) the cluster structure. A further limitation of using generic dimensionality reduction techniques for clustering is that the low dimensional data embedding typically varies substantially across different methods. This is a problem from a user's perspective because there is no principled approach to select one embedding over the others, even if the user knows the type of clusters they are seeking.
Numerous implementations of clustering algorithms and generic dimensionality reduction techniques are available in the MATLAB programming language. The MATLAB toolbox for dimensionality reduction, is the most extensive MATLAB toolbox for this purpose that we are aware of. A number of open source MATLAB implementations of robust PCA (which is not included in the previous toolbox) like fastRPCA, are also available.
To the best of our knowledge OPC is the only library in the MATLAB programming
language that implements dimensionality reduction methods explicitly designed
for clustering.
The methods included optimise clusterability criteria motivated from
-means,
normalised graph cut, spectral, and density clustering.
Partitioning, as well as divisive hierarchical clustering algorithms are
provided.
To render the algorithms accessible to non-expert users,
all the implemented algorithms require minimal input from the user, and employ
parameter settings recommended in the literature. However,
all the parameters of each algorithm can be modified
by specifying optional arguments.
A very appealing characteristic of clustering algorithms that perform dimensionality reduction internally is that they enable the visualisation of the clustering model. Such visualisations constitute an invaluable component of the process of validating a clustering model. OPC provides a common interface across algorithms to produce such visualisations. The optimal projection matrix is one of the outputs of all partitioning algorithms in the library. This matrix jointly with the cluster assignment vector, can be readily used to visualise the clusters. The divisive hierarchical algorithms return the cluster hierarchy as an object of the cluster tree, ctree, class. This class enables the visualisation of the binary partition at each node of the cluster hierarchy (tree). It also enables the modification of the clustering model by pruning subtrees, or partitioning leaves of the current model. The binary partition at any node of the ctree object can also be altered by modifying the arguments of the projection pursuit algorithm used to produce it. An extensive example of validating and modifying the clustering model using these functionalities is provided in Section 6.
To render OPC extensible, we include an interface that allows the user to
create divisive hierarchical algorithms that have all the aforementioned
features by providing as input only a projection pursuit function for
clustering. Section 8 illustrates how to obtain the well known
bisecting -means algorithm [23] through this approach,
as well as how to create a divisive hierarchical version of the
LDA--means algorithm [3].
To install OPC a C and C++ compiler is required. Detailed installation instructions for MATLAB and Octave are provided in the following sections. OPC depends on the following two open source libraries that are included in the library:
In Octave after each restart you also need to load the statistics and optim packages (see last paragraph of Section 2.2 for more details). The setpath script also performs this task.
OPC requires the statistics and optimization MATLAB toolboxes. To use OPC it is also necessary to compile the C++ FIGtree library [14]. The most recent version (0.9.3) is included in the OPC library in the directory src/libs/figtree-0.9.3/. For instructions on how to compile the library refer to the README.md file within this directory, or equivalently to the FIGtree GitHub page. Effectively, the process involves two steps. First the C++ library needs to be compiled. It is recommended to use the GCC compiler, which is straightforward to install in Linux and Mac.
$ # Note this is taking place in the command line not within MATLAB or Octave $ # Assuming OPC_DIR is the path to the directory where OPC was uncompressed $ cd (OPC_DIR)/src/libs/figtree-0.9.3/ $ make all
In Microsoft Windows GCC is also recommended but there are instructions on how to compile the library using Microsoft Visual Studio. Moreover, the SourceForge FIGtree page contains releases with Windows binaries.
After the successful compilation of the C++ library the MATLAB interface to FIGtree needs to be compiled, as well as two C++ functions that compute one-dimensional Gaussian kernel density estimators and their derivatives. (A C++ compiler is necessary for this step.) The script install.m in the root OPC directory is included to simplify this process. Beware that this script assumes that the path to the FIGtree library is (OPC_DIR)/src/libs/figtree-0.9.3/. If the FIGtree is in a different location then edit the install.m script to provide the correct path to the corresponding folder. In MATLAB:
>> cd('(OPC_DIR)/')
>> setpath
>> install
OPC uses object oriented programming and contains classdef classes. These are only supported after the Octave 4.0 release. OPC is therefore incompatible with previous versions.
OPC requires the statistics package, and the non-linear optimization package, optim. Both packages can be found at the extra packages for Octave repository. Detailed instructions to install and load extra packages in Octave are provided in relevant documentation page. Once these are installed they need to be loaded after every restart of Octave. The setpath script located in the root OPC directory loads these packages and adds the OPC directory and its subfolders to the Octave search path.
To complete the installation of OPC it is necessary to compile the FIGtree library, and two C++ functions that compute one-dimensional Gaussian kernel density estimators and their derivatives. Refer to the description of this process in the previous section.
The user guide for OPC is provided at the GitHub OPC repository. The documentation is also available online at this link. A function reference for OPC, created through the M2HTML documentation system, is available at this link.
The file reproduction_script.m in the root OPC directory reproduces every example in this document in (the results reported in this document are obtained using MATLAB 2018a). To recreate all the figures (in PNG format) uncomment the lines which call the print function, which follow calls to the plot and nplot functions.
The preferred way to contribute to OPC is to fork the main repository on GitHub. Detailed instructions are available through the online Git documentation. Please use GitHub issues to file bug reports and feature requests.
The OPC library contains implementations of the following clustering algorithms:
-means (LDA--means) [3]
-means [23] and a projection pursuit
version of this algorithm based on LDA--means.
The implementation of these
algorithms is used as an illustration of how the user can extend the library.
We next provide a brief exposition of the implemented methods.
Throughout we assume that the
dataset consists of
vectors in the
-dimensional Euclidean space,
.
The rows of the data matrix,
, correspond to data points.
The projection matrix is defined as
, where
, and
is the identity matrix in
dimensions.
When there is a single projection vector we use lower case notation,
,
to denote vectors that lie on the -dimensional unit-sphere,
.
The most widely used approach to combine dimensionality reduction and
clustering is to project the -dimensional dataset onto the first
principal components.
Principal Component Analysis (PCA) can be considered the most popular
projection pursuit method. PCA can be formulated either as maximising the
variance of the projected data, or minimising the squared reconstruction
error [10]. PCA is the only projection pursuit method that has a
closed form solution. For a given choice of , the projection index is
optimised by the eigenvectors associated with the largest eigenvalues
of the data covariance matrix.
Although there is no guarantee that the subspace spanned by any
principal
components preserves the cluster structure, this approach has been found to be
effective in a plethora of applications [12].

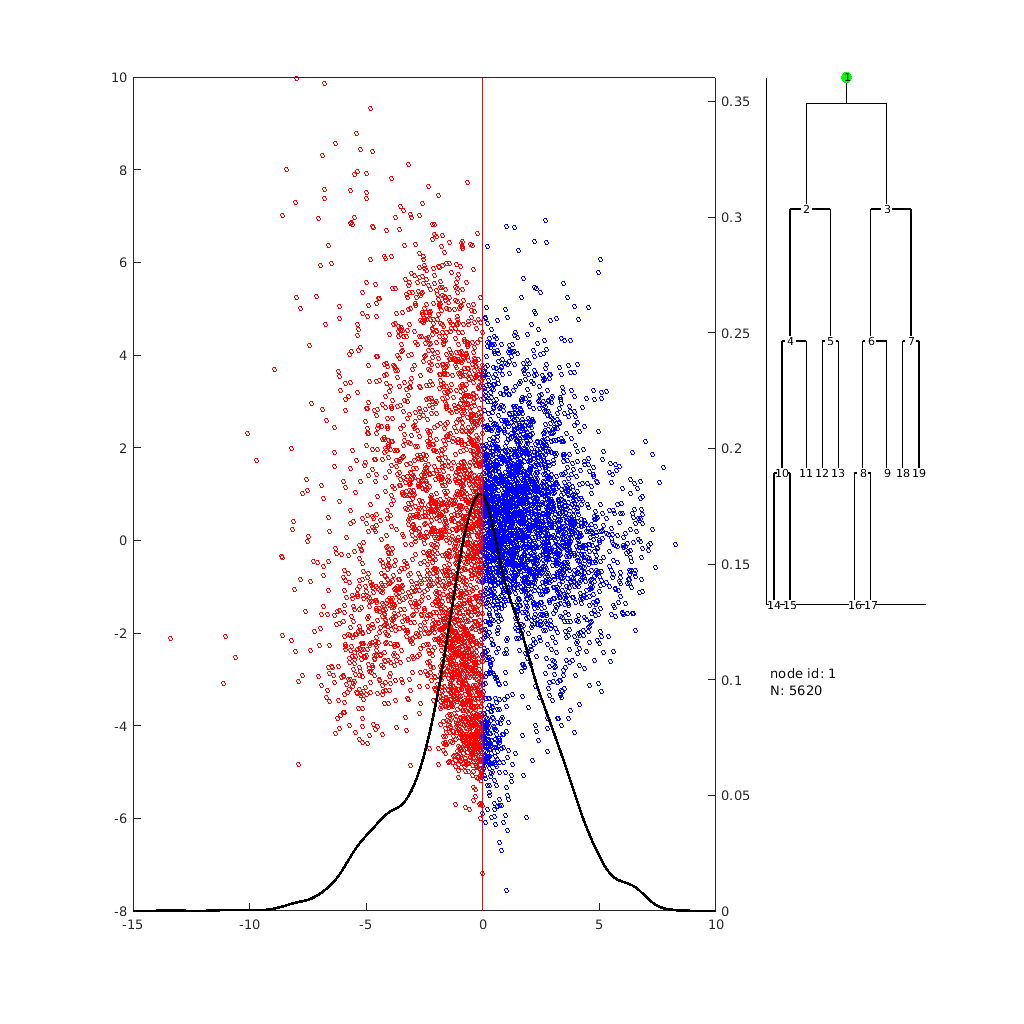

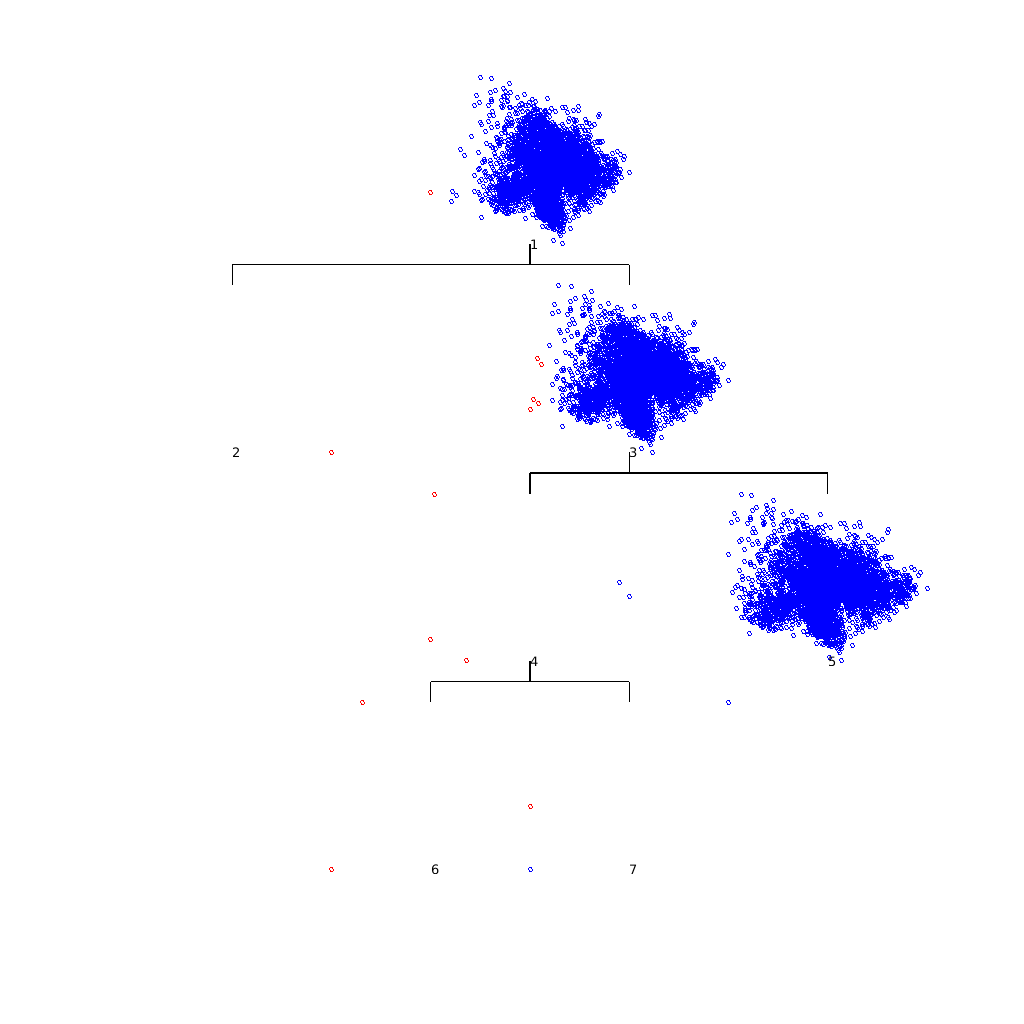

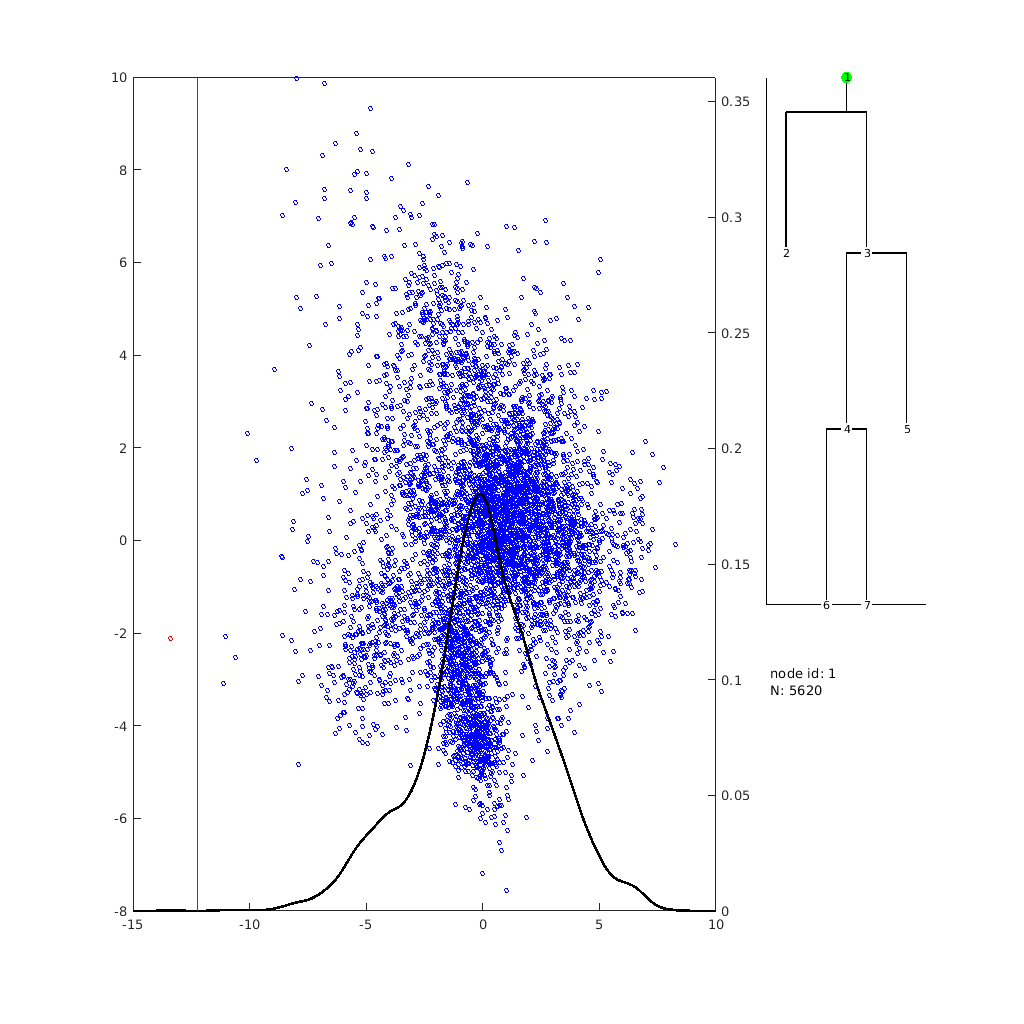

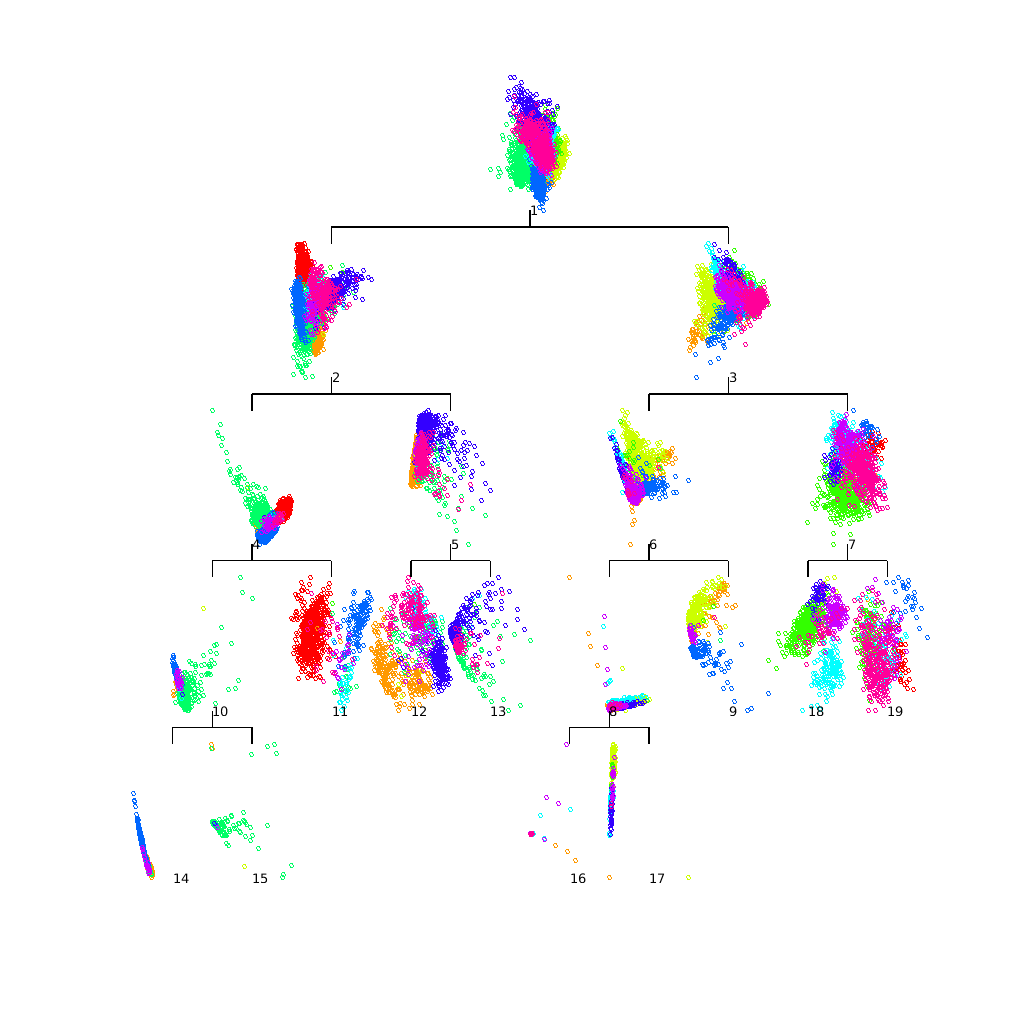

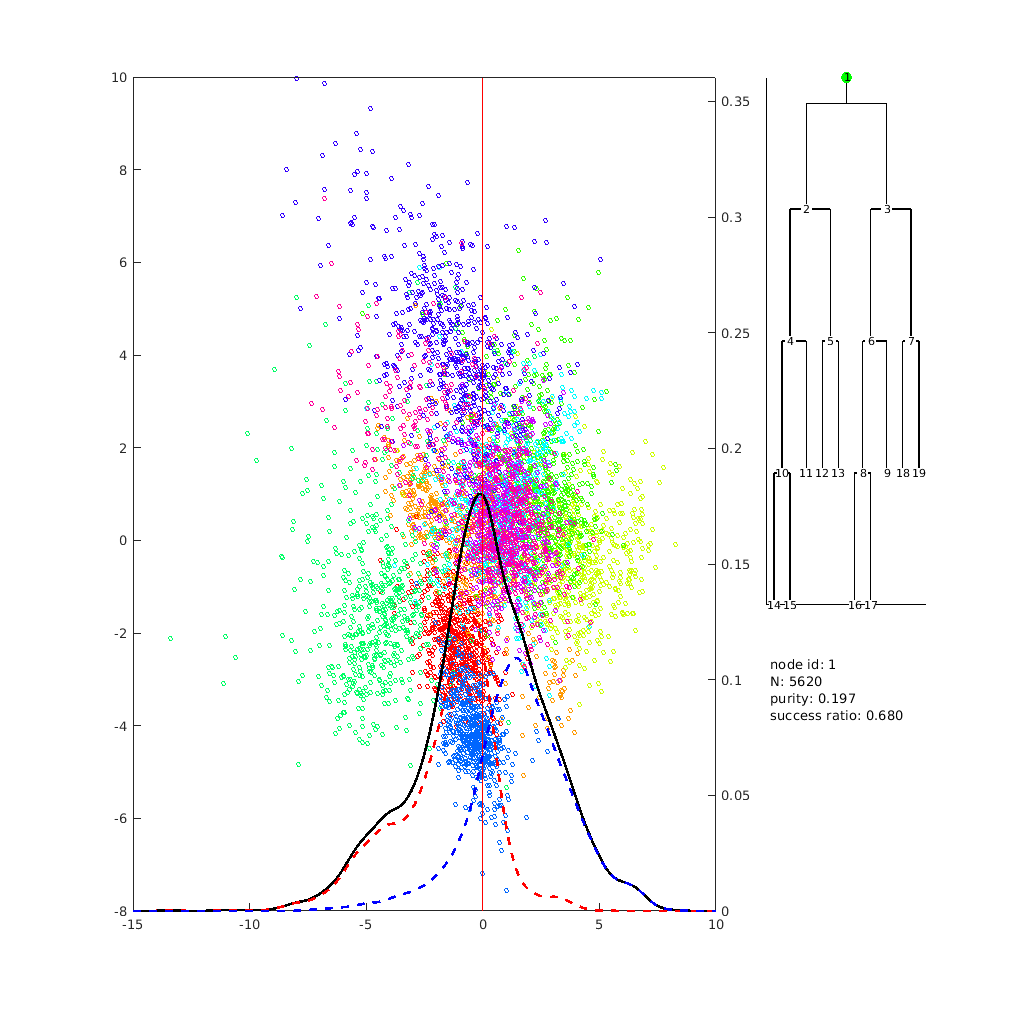

PDDP and dePDDP are two divisive clustering algorithms that recursively project (subsets of) the data onto their first principal component. PDDP bi-partitions the data by splitting at the mean of the projections, while dePDDP constructs a one-dimensional kernel density estimator (KDE) and splits at the lowest local minimum. Effectively, both algorithms bi-partition each cluster using a separating hyperplane,
is the unit-length
vector normal to the separating hyperplane,
and
is the displacement of the separating hyperplane from the origin.

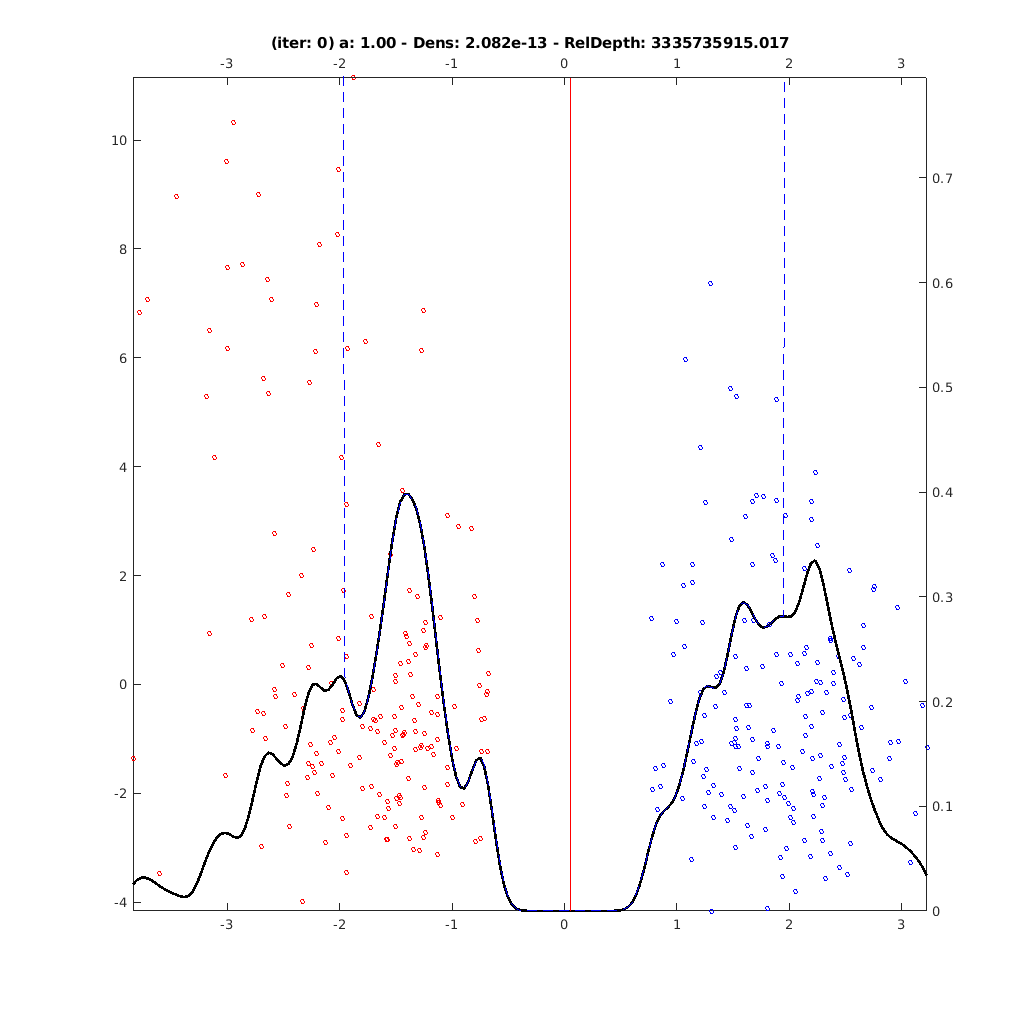

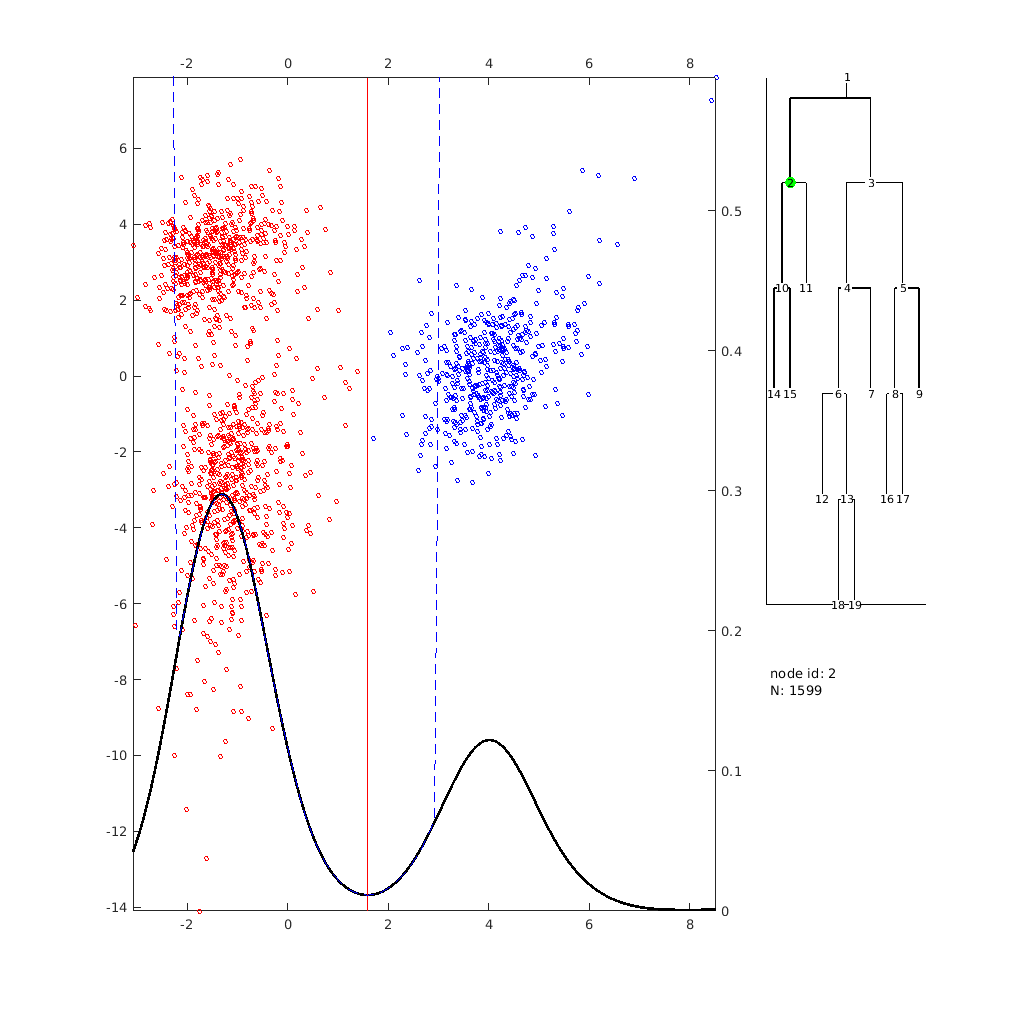

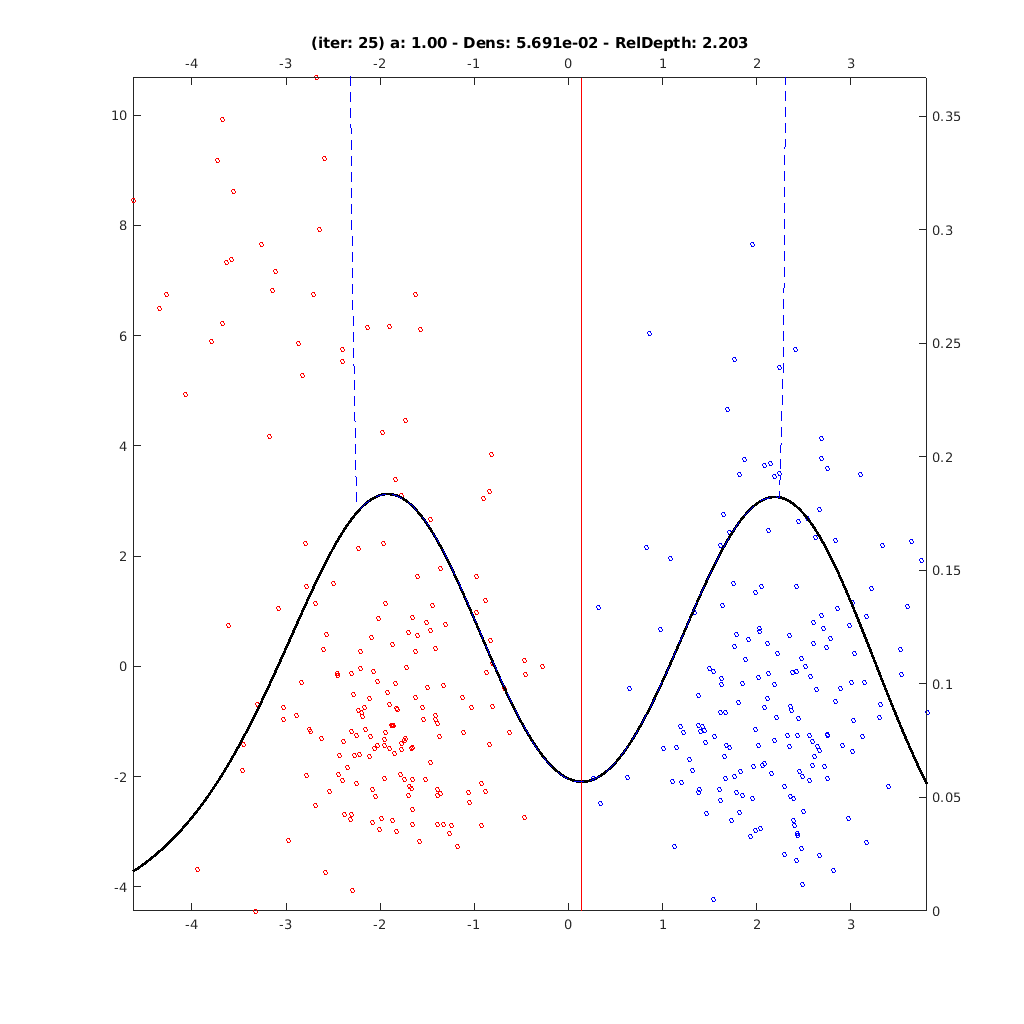

The Minimum Density Divisive Clustering (MDDC) algorithm recursively bi-partitions the data using Minimum Density Hyperplanes (MDHs) [18]. An MDH avoids intersecting high density clusters by seeking the hyperplane that minimises the integral of the empirical probability density function along its surface,
can be estimated through the one-dimensional density estimator,
through the above equation enables us to
estimate MDHs. The MDH is the solution to the following optimisation problem,
,
is a penalty function that ensures that
the optimal MDH is within
standard deviations,
from the mean of the
projected data,
. Such a constraint is necessary since it is always possible
to obtain hyperplanes with density arbitrarily close to zero if the hyperplane is sufficiently
far from the centre of the data.
The terms
and
are constants whose values are fixed (see [18]),
while is adaptively set by the projection pursuit algorithm.
The most computationally expensive task in the estimation of MDHs is the minimisation of
the one dimensional kernel density estimator, for each .
This is achieved by first evaluating
on a grid of
points, to bracket the location
of the minimiser, and then applying bisection to compute the minimiser
at the desired accuracy.
The Fast Gauss Transform [14] reduces the computational
cost of the first step, and by far most computationally expensive step,
from
to
. Bisection requires
iterations to locate the minimiser with accuracy
.
Variance ratio clusterability [32] is a measure of strength or conclusiveness
of the cluster structure in a dataset.
Let
denote a -way partition of the data set
, and
the function
that takes
as input a set of data points and returns their mean vector.
Then the variance ratio clusterability of
is defined as,
 |
||
| such that: |  and  |
-means objective function,
 |
||
| such that: |  and |

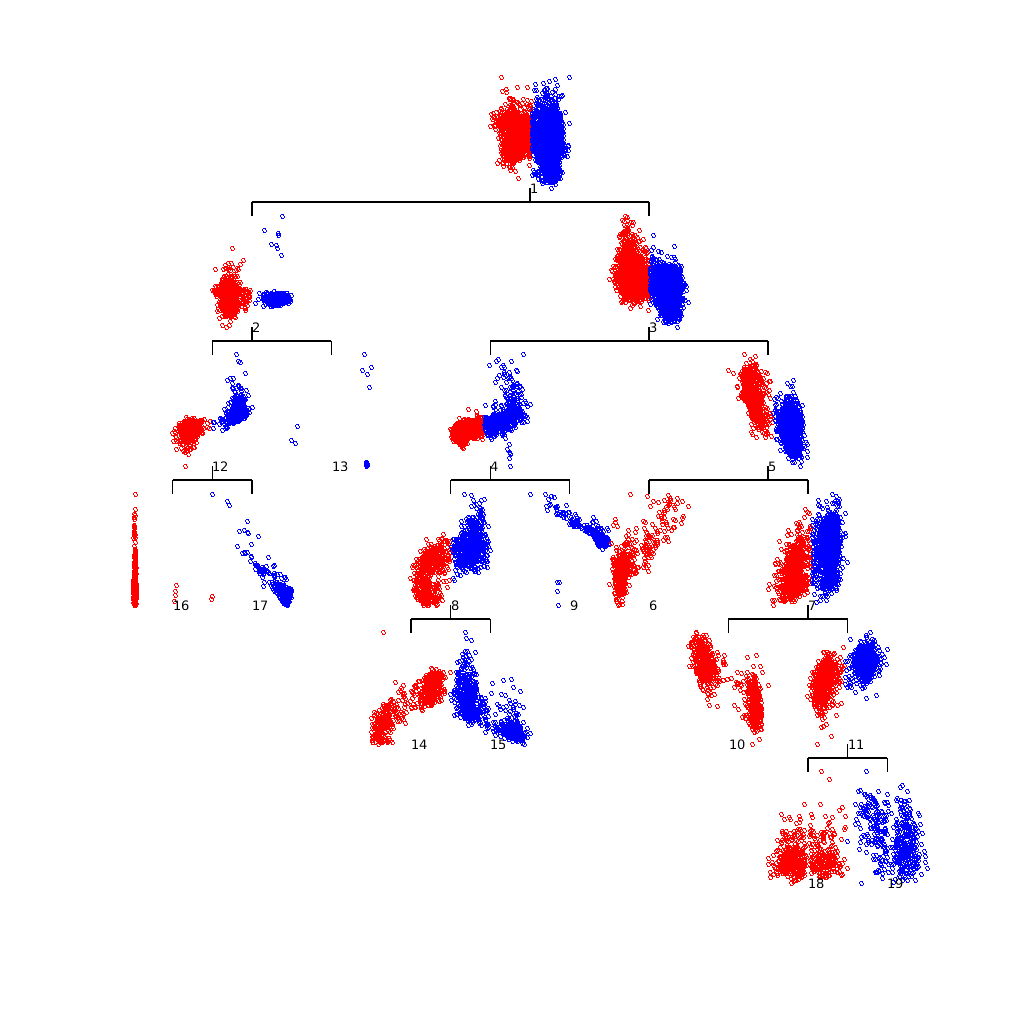

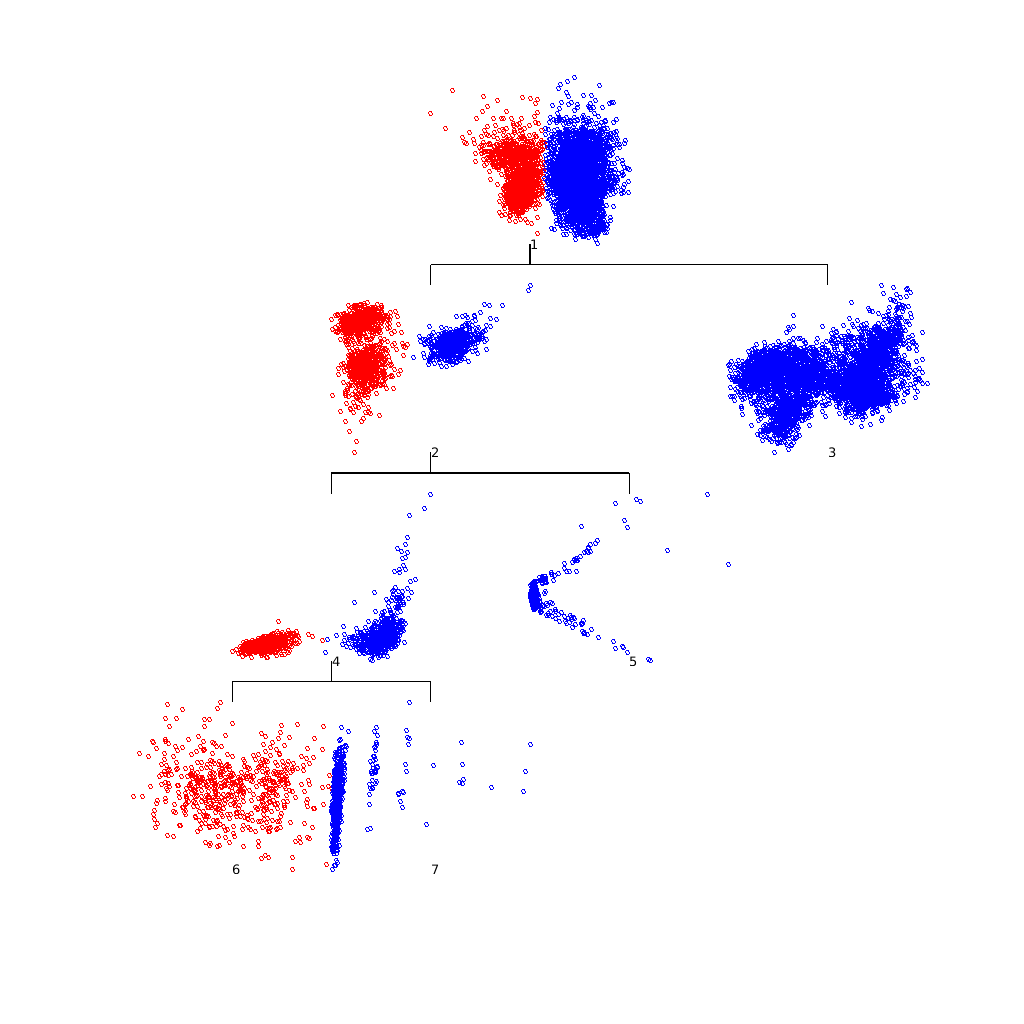

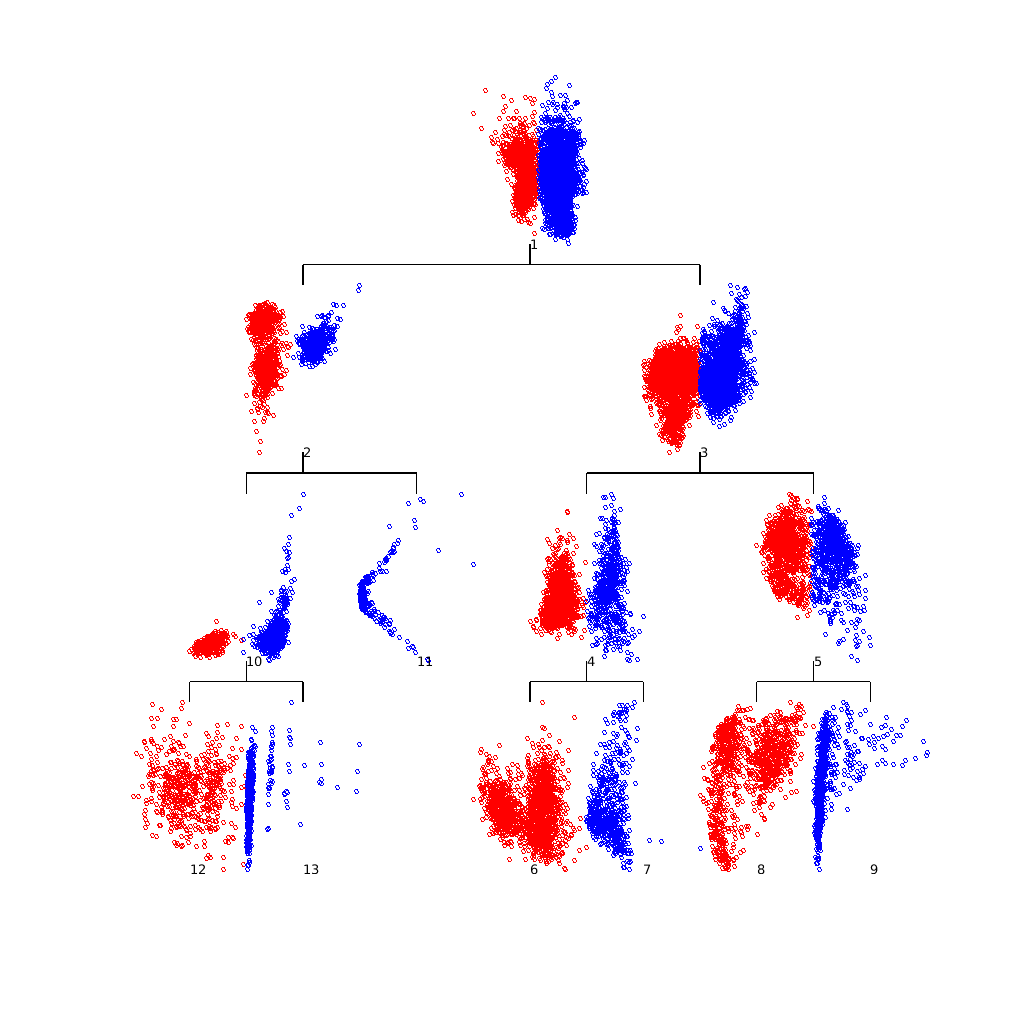

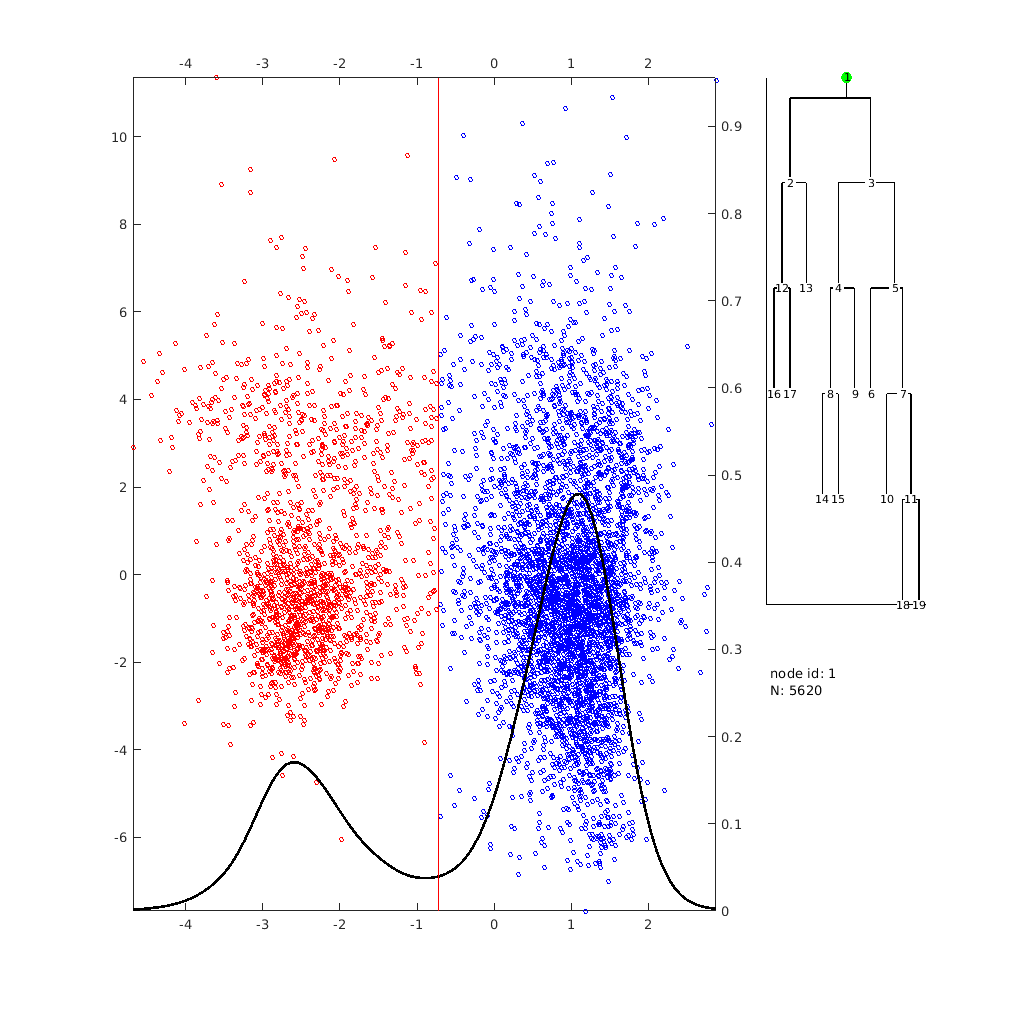

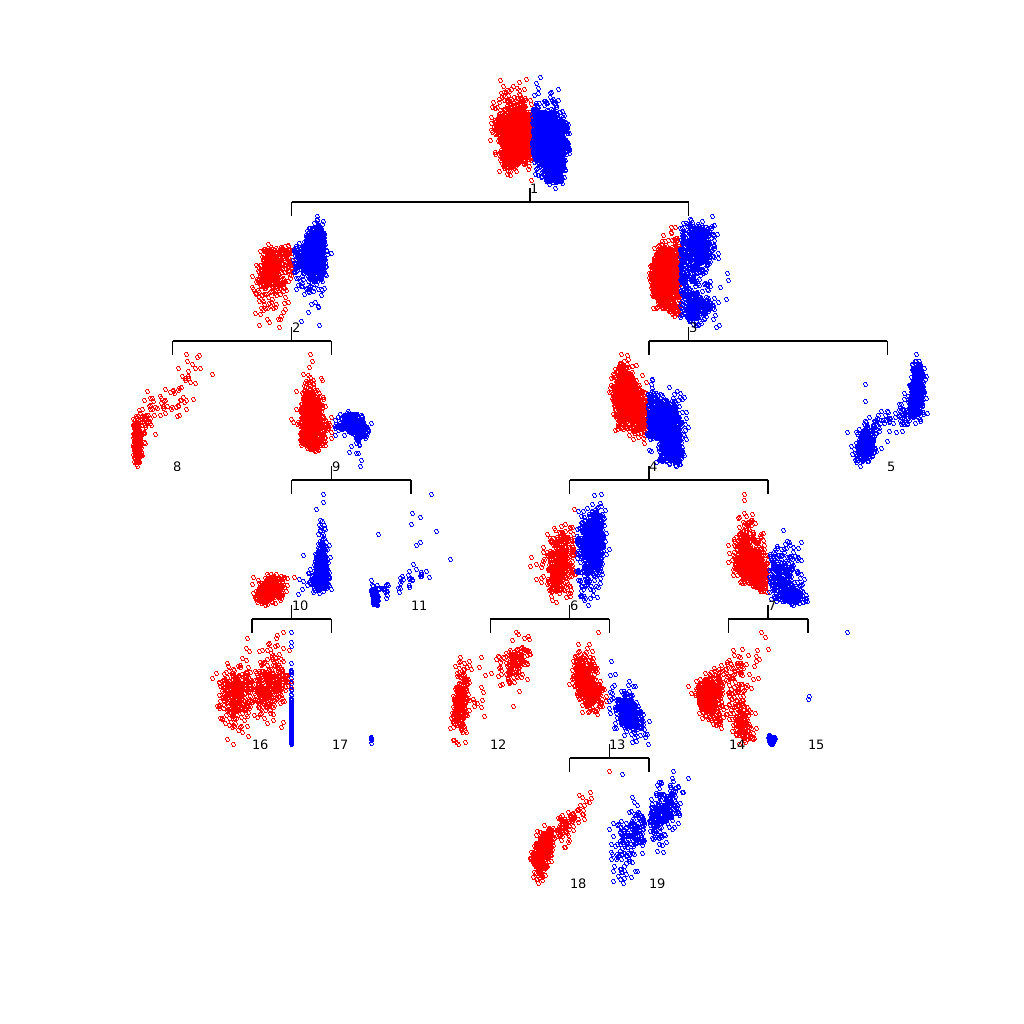

The Maximum Clusterability Divisive Clustering (MCDC) [6]
algorithm recursively bi-partitions the data by identifying the
unit-length vector that maximises
the variance ratio clusterability index of the projected data.
The resulting hyperplane separators are called Maximum Clusterability Hyperplanes (MCHs).
For any
the binary partition of
is given by
.
Let
the data covariance matrix,
.
Then the projection index for a given is given by,
 |
that optimises the variance ratio clusterability in
time. This is feasible because in this case the set
satisfies,
for some
.
The LDA--means algorithm [3] exploits the connection between
Linear Discriminant Analysis (LDA) and -means clustering. To see
this we first need to introduce some notation.
Without loss of generality assume that the data are centred at zero.
Define the total scatter, the between-cluster scatter, and the within-cluster
scatter matrices as,
 |
 |
|
 |
 |
|
 |
 |
-means objective function can be expressed as,
is the trace operator. Since
, minimising
is equivalent to maximising
.
In LDA the cluster assignment (class labels) are assumed known and the
algorithm seeks the orthonormal matrix
that,
The fact that both LDA and -means aim to minimise the within class (cluster)
scatter and maximise the between class scatter motivates the LDA--means
algorithm.
LDA--means is a two step iterative algorithm. In the first step the
-dimensional linear subspace in which the data are projected is
fixed, and the objective is to identify the cluster assignment that maximises
the ratio of the between class scatter to the within class scatter of the
projected data:
 |
 |
|
 |
 |
-means algorithm is applied to solve this problem.
In the second step the cluster (class) assignment is considered fixed and
the objective is to identify the orthonormal matrix
that maximises
the objective function. LDA is used to solve this problem.
The only element of the algorithm that remains
unspecified is the initial choice of . In [3] it is
recommended to initialise to the first principal components.
The convergence of LDA--means algorithm is not discussed
in [3].
Since no implementation of -means is guaranteed to identify the
globally optimal solution to the problem in Eq. (3.3) the two-step
procedure in LDA--means can fail to converge, or even to to
monotonically improve the objective function, Eq. (3.4).
It is important to note that the are multiple formulations of the LDA problem.
We make use of the formulation which maximises the eigenvalues of the matrix
. Although this formulation is not guaranteed to converge, it
benefits substantially from the available closed form for the LDA step.
The approach to clustering based on graph theory associates clusters with strongly
connected components of a graph,
. The set of vertices, , corresponds
to the data set,
, while edge weights represent pairwise
similarities between them [28].
The graph,
, can be equivalently represented through an adjacency, or similarity, matrix,
, defined as,
is a kernel function (with the Gaussian kernel being the most frequent choice).
The degree of a vertex is defined as,
,
the volume of
is defined as:
A graph cut is a partition of the vertices of a graph into pairwise
disjoint components. The minimum normalised cut of a graph is the
solution to the following optimisation problem,
 |

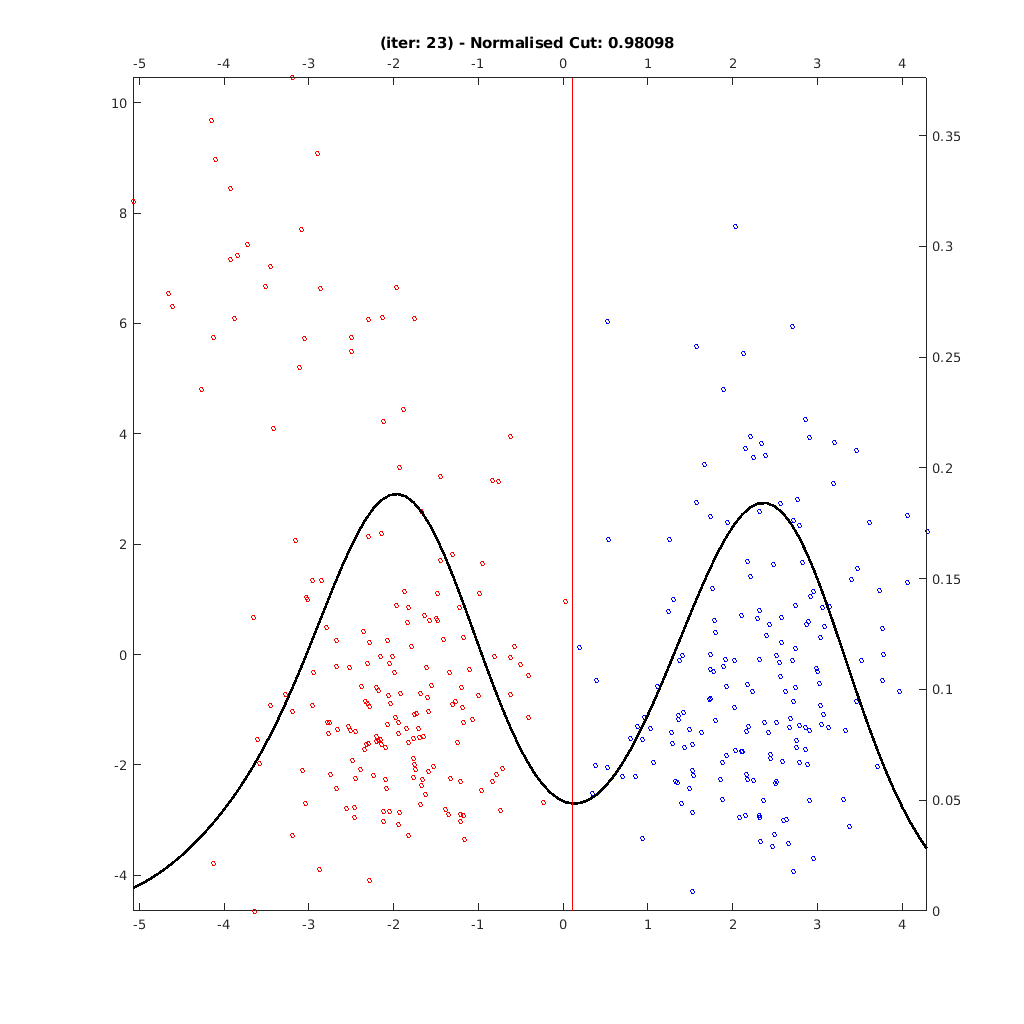

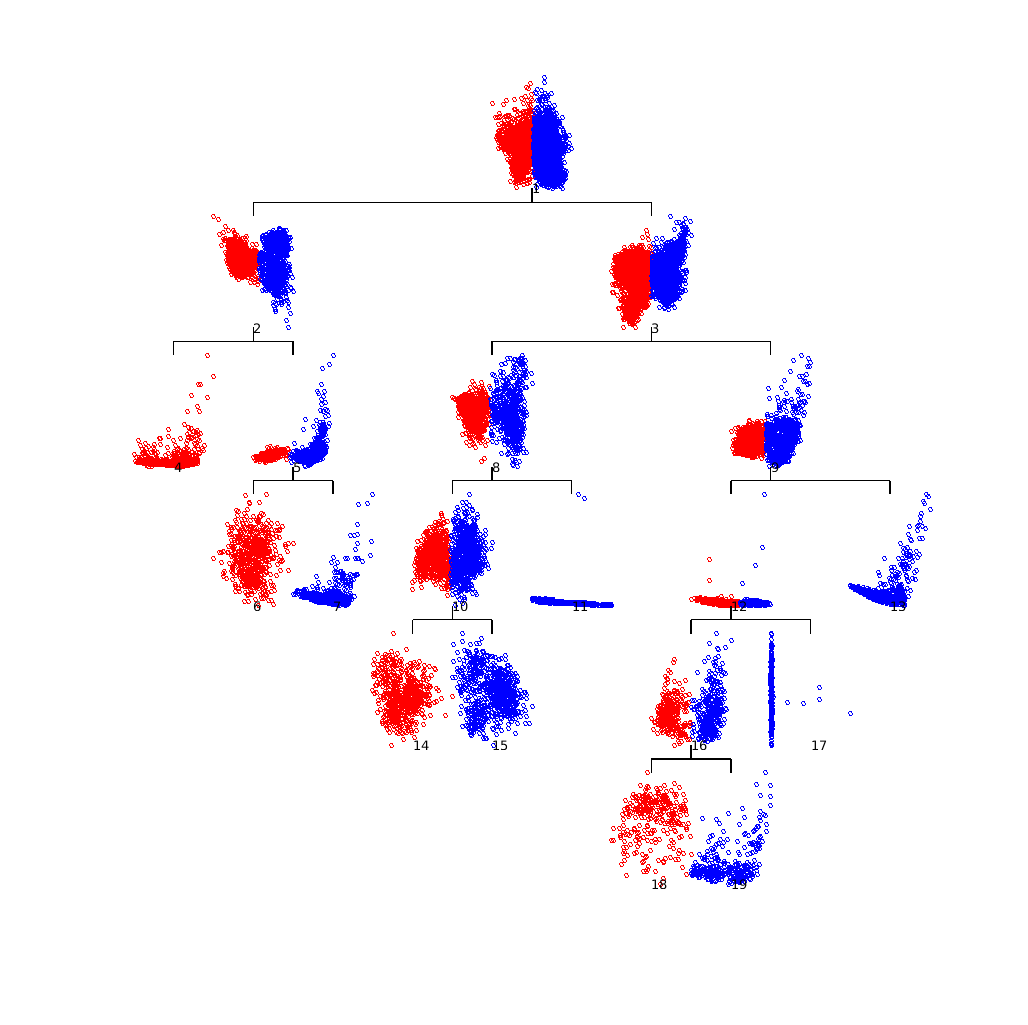

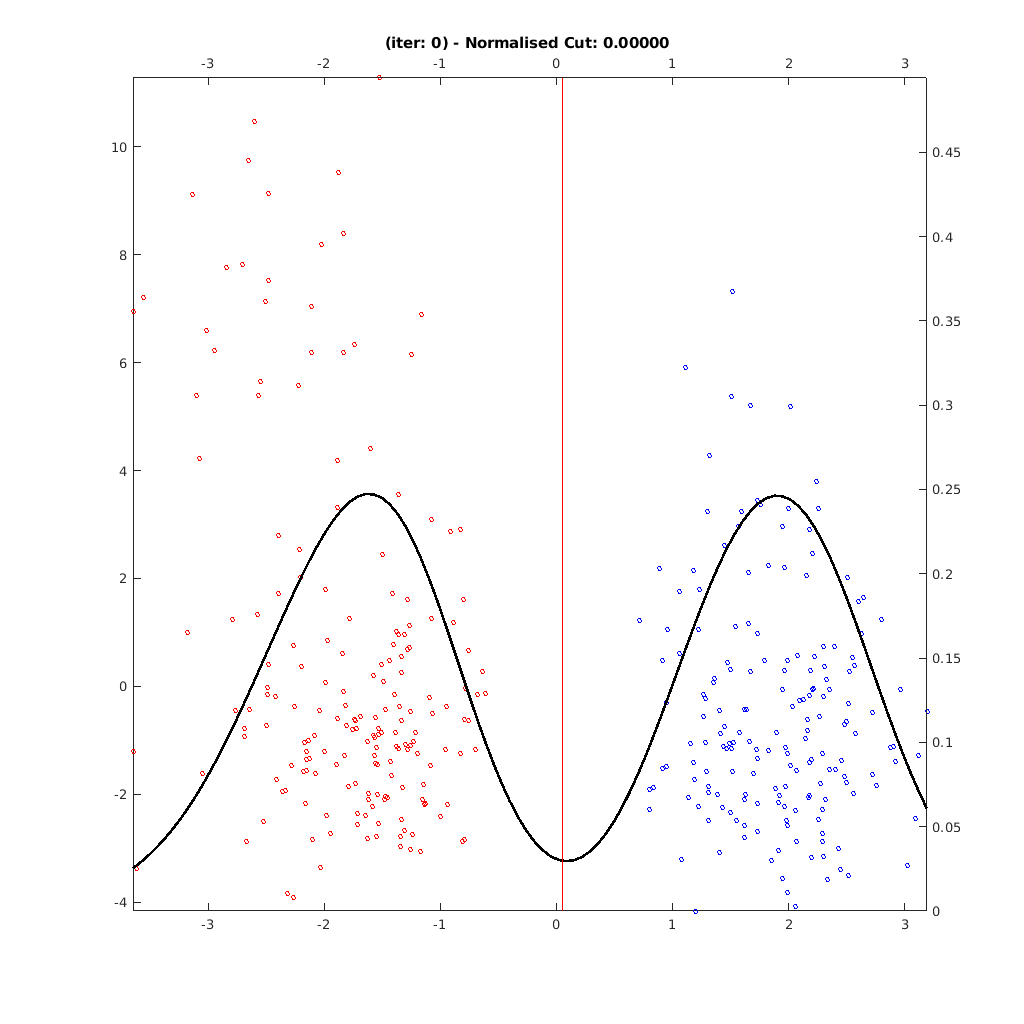

The minimum normalised cut divisive clustering
(NCUTDC) [5] is an algorithm that recursively bi-partitions
the data using hyperplanes.
NCUTDC relies on the fact that if the data points are projected onto a vector,
,
and the Laplace kernel is used to compute the pairwise similarities,
where
for some
)
can be computed in log-linear time.
The projection index for this method is:
 |
 |
|
 |
 |
|
 |
 |
It is important to stress that because the projection index underlying NCUTDC uses similarities computed on the projected data, this algorithm cannot operate on an arbitrary graph or similarity matrix.
Spectral clustering is a family of methods that solve a continuous relaxation of the original NP-hard graph cut problem in (3.6) [4,21,28]. To describe the continuous relaxation of the normalised graph cut problem it is first necessary to define the graph Laplacian matrix:
 |
 |
is the adjacency matrix defined in Eq. (3.5),
is the degree matrix, and
is the identity matrix
in dimensions.
For a given -way partition of
into
, define the
matrix
as:
to
be any orthonormal matrix in
[28].
The normalised cut spectral clustering problem is thus expressed as [21]:
whose columns
are the eigenvectors of
that correspond to the smallest
eigenvalues (or equivalently the eigenvectors that correspond to the largest
eigenvalues of
).

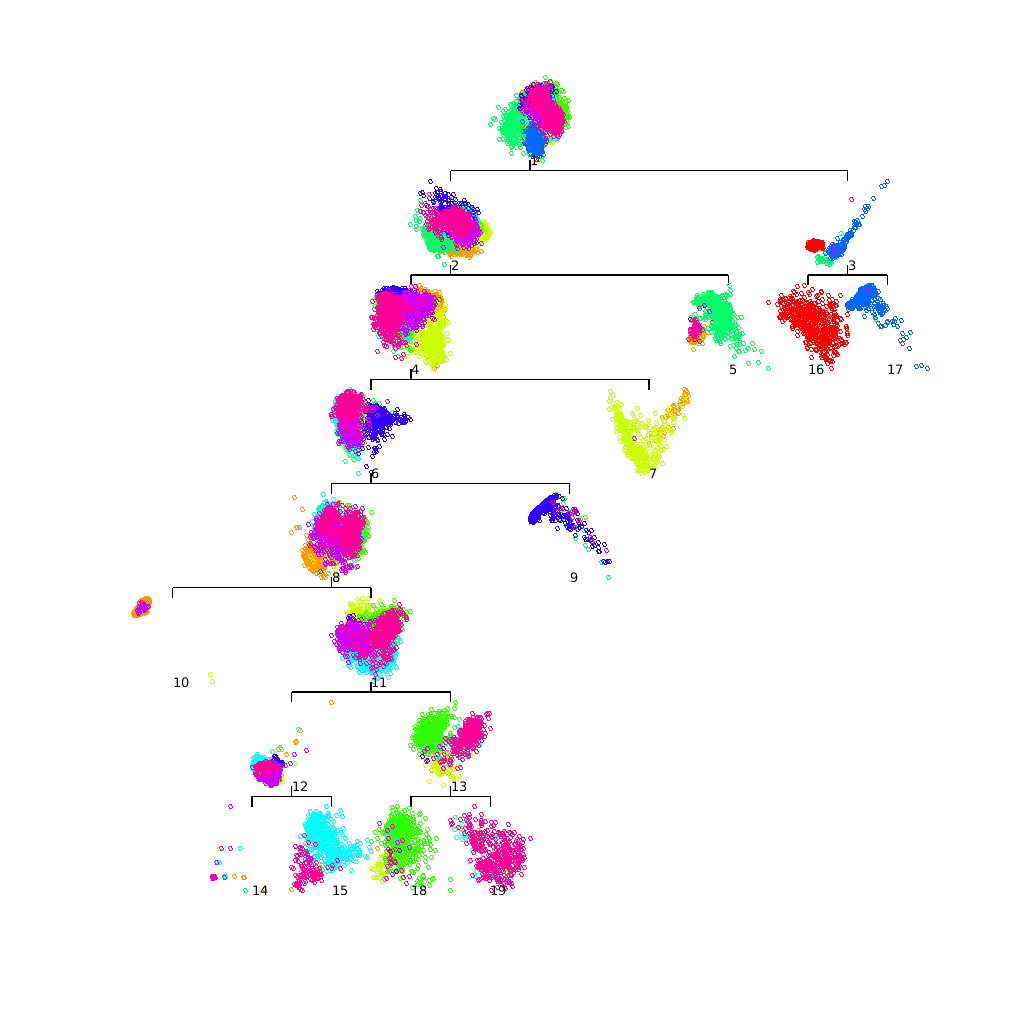

The Dimension Reduction Spectral Clustering (DRSC) [16] algorithm
aims to identify the projection matrix, , that maximises
the sum of the largest eigenvalues of the
,
where both the similarity and degree matrices, and
respectively,
are computed from the projected data,
.
The sum of the largest eigenvalues of
is a measure of
spectral connectivity, with larger values indicating more separable clusters.
smallest eigenvalues of .
It is clear that
for a given the matrix
that maximises the trace in (3.8) has
columns given by the eigenvectors associated with the largest
eigenvalues of
(or equivalently the smallest
eigenvalues of ).
DRSC employs a two-stage algorithm to solve the above optimisation problem.
In the first stage is fixed and the eigenvectors of
are computed to obtain . In the second stage, is fixed and
for each column of gradient ascent is performed to maximise the trace
in (3.8). The projection index for this method can therefore be written as:
 |
 |
|
 |
 |
|
 |
denotes the
-th smallest eigenvalue of
its matrix argument.
However, in the computation of the gradient of
in the second stage of
the algorithm, the degree matrix is considered fixed, and therefore the
influence of on the degrees of the vertices is ignored. The gradient
estimated by assuming is fixed is not the gradient of the overall objective
function. There is furthermore no guarantee that this direction estimated
through this approach is even an ascent direction for the objective function.
This can cause DRSC to fail to converge.
Spectral Connectivity Projection Pursuit Divisive Clustering
(SCPPDC) [7] recursively bi-partitions the data by projecting
onto the linear subspace that minimises the second smallest eigenvalue of the
normalised graph Laplacian, .
In more detail, for each projection matrix, , the data are first projected
onto , and then the similarity matrix, , the degree matrix, , and the normalised graph
Laplacian, , are computed from the projected data.
The projection index employed by this method is the value of the second
smallest eigenvalue of
:
, with
, is a penalty function included to ensure that the columns
of are orthogonal.
SCPPDC therefore employs the same objective function as DRSC for the case when
.
However, unlike DRSC, the projection pursuit algorithm employed by
SCPPDC is globally convergent because the algorithm uses the gradient of the
overall objective function. Furthermore in each gradient descent step SCPPDC
updates the entire projection matrix, rather than optimising each column of
separately as in DRSC.
Bisecting -means [23] is a well known divisive clustering
algorithm originally proposed for document clustering, that recursively applies
-means. Since 2-means can be viewed as separating the clusters by first
projecting the data onto the vector connecting the two centroids and then
assigning observations to clusters based on their location relative to the
mid-point between the two centroids, this algorithm can be considered as
performing dimensionality reduction.
This algorithm is included in the library as an example of how a user can
extend the functionality of the library by specifying a function that performs
projection pursuit for clustering (see Section 8).
A projection pursuit version of bisection -means based on the
LDA--means algorithm is also discussed in Section 8.
The algorithms in OPC are designed to require minimum input from the user, so that non-expert users can directly apply the implemented methods. However all the parameters of each algorithm can be controlled by specifying the optional parameters through name, value pairs. All clustering algorithms (except drsc) require only the specification of the data matrix and the number of clusters. (drsc also requires the specification of the scaling parameter of the Gaussian kernel used to compute similarities, because the cross-validation approach recommended in [16] is computationally very expensive.)
Complete documentation for each function is available using help,
or through the HTML function reference (see Section ![[*]](/usr/share/latex2html/icons/crossref.png){kind=icon}
).
The partitioning algorithms, ldakmeans and drsc, return as the first three output arguments:
All divisive clustering algorithms in OPC return the following two output arguments:
The class ctree implements a generic interface to interact with cluster hierarchies that enables the visualisation, and modification of the hierarchy. The properties of the ctree are:
The first two properties are necessary to describe a cluster hierarchy, while the cluster assignment, cluster is the main output from any clustering algorithm. The last two properties data and params are useful to visualise and modify the clustering model.
The main methods for the ctree class are:
3 matrix specifying an RGB triplet for each one of the clusters.)
The last two functions, prune and split are extensively discussed in the section on model validation and modification (Section 6). Visualisation of clustering models obtained by different algorithms are discussed in almost every example in Section 5. We next describe the objects that describe binary separators (elements of the Node cell array in the ctree class.
Different clustering algorithms produce objects of different classes to describe the binary separator employed. The properties discussed below are shared by all classes of binary separators in OPC, and suffice to understand how to extract all the meaningful information from such objects.
this signifies that the projection
pursuit algorithm has failed to identify a valid separator for this dataset
(see examples in Section 7.1).
In the next code snippet we provide a very simple example of how to extract information from ctree object, making use of all the above information. We first compute a cluster hierarchy with PDDP. (Each algorithm will be discussed in much greater detail in the next section.)
s.t.
>> % load an example dataset
>> load('datasets/optidigits.mat');
>> % Estimate a divisive hierarchical model using PDDP
>> [idx,t] = pddp(X,10);
>> % Produce visualisation (output not shown presently)
>> plot(t);
>>
>> % Get separator at left child of root node
>> node2 = t.get(2);
>> % Identify which observations were allocated Node 2
>> obs = abs(node2.idx);
>> % Identify how many observations were allocated to Node 2
>> length(node2.idx);
>> % Projection matrix for this node (1st PC for this data subset)
>> node2.v
>> % Value of projection index: PDDP uses total_scatter by default
>> node2.fval
The following list of optional input arguments is not exhaustive but is meant to illustrate the main parameters that are common across most of algorithms. For a comprehensive list of all the optional arguments for each algorithm use help from the command line interface, or refer to the HTML function reference.
For partitioning algorithms, like drsc, and for algorithms that estimate a single separating hyperplane, like mdh, mch and ncuth, v0 can be defined as fixed projection matrix/ vector.
In this section we present examples of using the algorithms implemented in OPC. Our aim is to illustrate not only the syntax and the main options for each algorithm, but also to highlight how a user can obtain insights about the clustering models produced.
We use the optical recognition of handwritten digits
(optidigits) dataset
from the UCI repository [13]. This dataset is included in the library and
combines the training and test datasets specified in UCI.
Observations correspond to
vectorised images of handwritten digits 0-9. The images have been compressed
to 8
8 pixels resulting in a 64 dimensional dataset.
The data are preprocessed by removing two features which have the same value for all
observations, and standardising the remaining features. The resulting dataset consists of
5620 data points in 62 dimensions. The data matrix and the true cluster
assignments are stored in optidigits.mat.
>> % Load optiditigs dataset: X := data matrix, labels := true cluster assignment
>> load('datasets/optidigits.mat');
We first apply -means and spectral clustering to the full dimensional data.
We use the built-in kmeans function in MATLAB and Octave, and the OPC
function spclust that implements the spectral clustering algorithm of
Ng. et al. [15].
The function spclust by default performs spectral clustering using
the Gaussian kernel to estimate the similarity (kernel) matrix.
If the scale parameter is not specified then spclust uses the local scaling
rule recommended in [31]. We have found that this
rule is effective in a plethora of applications and hence incorporate it
as the default option in spclust. (MATLAB code for the complete
self-tuning spectral clustering algorithm [31],
which also
estimates the number of clusters, can be found
here.)
Note that the default initialisation of kmeans in both MATLAB and
Octave is through the -means++ algorithm [1], and therefore
the output of the kmeans function is not deterministic. This also affects
spectral clustering because the final cluster assignment is performed through
kmeans. To ensure that results are reproducible we set the random number
seed.
All the results reported in this document were obtained on MATLAB 2018a.
>> % set random number seed to ensure reproducibility (MATLAB only)
>> % in Octave use rand('seed',x) and randn('seed',x)
>> rng(987)
>> % k-means clustering
>> km = kmeans(X,10);
>> % Spectral clustering
>> % (In Octave the pdist function can fail for this dataset size)
>> sc = spclust(X,10);
The cluster_performance function implements four well-established
external cluster evaluation measures: Purity [35], Normalised
Mutual Information [24], adjusted Rand
index [8], and -measure [19].
>> % Evaluate cluster performance
>> % (performance will vary on consecutive kmeans executions due to
>> % random initialisation. Performance is reported for illustration)
>> cluster_performance(km, labels)
ans =
struct with fields:
Purity: 0.4683
NMI: 0.5145
AdjRand: 0.3371
Vmeasure: 0.5101
>> cluster_performance(sc, labels)
ans =
struct with fields:
Purity: 0.6521
NMI: 0.6191
AdjRand: 0.4817
Vmeasure: 0.6189
The most common approach to handle datasets containing irrelevant or correlated
features is to first perform dimensionality reduction, and then apply a
clustering algorithm. Although this approach has frequently produced
satisfactory results, there is no guarantee that this will be the case as highlighted
in the influential review paper on high-dimensional clustering [12].
The dimensionality reduction MATLAB
toolbox
contains a large number of generic dimensionality reduction methods. At present we
will use PCA, which is most widely used in practice
and for which a built-in implementation is available in both MATLAB and Octave.
The function pcacomp in OPC takes as input a data matrix and a vector
of integers that specifies which principal components should be returned.
The first output argument of
pcacomp is a matrix whose columns are the principal
component vectors in the order these are specified in the second argument
to the function.
We first choose to project the data onto the first 9 principal
components. This choice is made because for a -means clustering
(
) dimensions are sufficient.
>> % Estimate the first 9 PCs
>> V = pcacomp(X,[1:9]);
>> % Perform clustering
>> kmPCA = kmeans(X*V,10);
>>
>> % (On this lower dimensional dataset the pdist function in
>> % Octave can work even if it failed on the original dataset)
>> scPCA = spclust(X*V,10);
>> % Assess performance
>> cluster_performance(kmPCA, labels)
ans =
struct with fields:
Purity: 0.6842
NMI: 0.6444
AdjRand: 0.5201
Vmeasure: 0.6442
>> cluster_performance(scPCA, labels)
ans =
struct with fields:
Purity: 0.6381
NMI: 0.6472
AdjRand: 0.4695
Vmeasure: 0.6466
Another common approach is to use the first principal components that
retain a pre-specified proportion of the variance. Different values for this
proportion have been suggested. In the present dataset preserving a proportion
very close to one requires retaining all 62 dimensions. We therefore use a
threshold of 0.9 which is attained by projecting onto the first 33 principal
components.
>> % Estimate the first 33 PCs
>> V = pcacomp(X,[1:33]);
>> % Perform clustering
>> kmPCA = kmeans(X*V,10);
>> scPCA = spclust(X*V,10);
>> % Assess performance
>> cluster_performance(kmPCA, labels)
ans =
struct with fields:
Purity: 0.6295
NMI: 0.6106
AdjRand: 0.4566
Vmeasure: 0.6100
>> cluster_performance(scPCA, labels)
ans =
struct with fields:
Purity: 0.6290
NMI: 0.6307
AdjRand: 0.4442
Vmeasure: 0.6289
Projecting onto the first principal components allows -means to
substantially improve its performance with respect to all evaluation
measures, but for spectral clustering some performance measures improve
while others do not. If the
dimensionality of the projection subspace is instead 33 then -means
still performs better than on the full dimensional data but worse than
when was set to nine. The performance of spectral clustering is also
worse when 33 rather than 9 principal components are used.
The first algorithm we discuss in which dimensionality reduction is an
integral part of the clustering process is LDA--means [3].
The function ldakmeans implements this algorithm.
As discussed in Section 3.4, LDA--means is a
partitioning algorithm that aims to identify the optimal low-dimensional
projection, and cluster assignment through a two-stage
iterative algorithm. In the first stage, the projection matrix is fixed and
-means is applied on the projected data to identify the optimal
cluster/ class assignment. In the second stage, the labels are treated as given
and Linear Discriminant Analysis (LDA) is used to identify the optimal linear
subspace.
The inability to identify the global optimum of the -means objective
function, and the variability due to the random initialisation of the centroids
in the kmeans function, cause
the algorithm to not be guaranteed to converge, or even to improve the value of the
objective function over consecutive iterations.
We apply ldakmeans twice to illustrate this point. The first execution yields a very good performance on this dataset. The performance is substantially lower in the second application of the algorithm. Enabling visualisation also illustrates that the algorithm does not monotonically improve the projection index, which is defined as the ratio of the trace of the between-cluster and within-cluster scatter matrices.
>> % Setting verb=1 enables visualisation
>> [ldakm,U,fval] = ldakmeans(X,10,'verb',1);
>> cluster_performance(ldakm, labels)
ans =
struct with fields:
Purity: 0.8096
NMI: 0.7808
AdjRand: 0.6772
Vmeasure: 0.7807
>> % Visualisation using actual labels
>> [ldakm,U,fval] = ldakmeans(X,10,'labels',labels,'verb',1);
>> cluster_performance(ldakm, labels)
ans =
struct with fields:
Purity: 0.6916
NMI: 0.6663
AdjRand: 0.5509
Vmeasure: 0.6661
We next proceed to discuss divisive hierarchical clustering algorithms. In this section we discuss PDDP and dePDDP; two methods that recursively project the data (subset) onto their first principal component, and split at a point along the projection vector. Note that this approach enables these algorithms to identify clusters defined in different subspaces. This is not feasible in the standard approach of first performing dimensionality reduction, and then clustering.
The pddp function implements the PDDP algorithm.
>> % Perform PDDP with default settings
>> [idx1,t1] = pddp(X,10);
Clusters: 1 2 3 4 5 6 7 8 9 10
>> % Evaluate cluster performance
>> cluster_performance(idx1, labels)
ans =
struct with fields:
Purity: 0.5171
NMI: 0.4324
AdjRand: 0.2842
Vmeasure: 0.4324
The second output argument is an object of the ctree class that stores the cluster hierarchy. The predicted clusters can also be inferred from this ctree object using the method tree2clusters:
>> sum(idx1 ~= tree2clusters(t1))
ans =
0
A very appealing characteristic of OPC is that it enables the user to visualise the clustering model produced by any divisive hierarchical algorithm in the library. The user can plot both the entire hierarchy, or specific nodes. The plot function in the ctree class produces visualisations of the entire hierarchical model:
>> % Plot cluster hierarchy >> plot(t1); >> % The optional argument 'labels' causes observations >> % to be coloured according to the actual cluster label >> plot(t1,labels); >> % The user can further specify which colours will be used for each cluster >> plot(t1,labels, lines(10));
 |

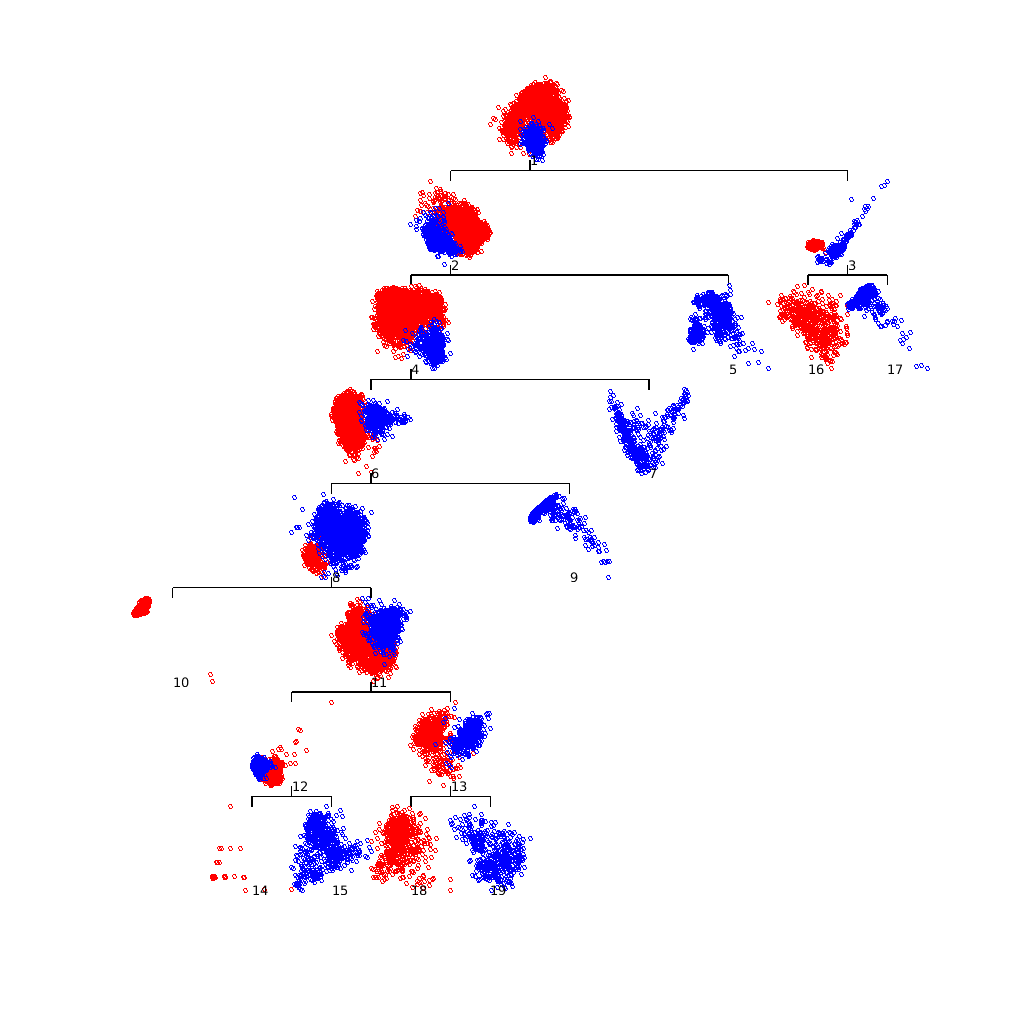

The output of the first two calls to the plot() function is illustrated in
Figure 5.1.
Each scatterplot in the figure depicts the data subset assigned to
the corresponding node in the hierarchy projected into a two-dimensional
subspace. In the case of algorithms that utilise one-dimensional projections
the horizontal axis corresponds to the optimal projection vector,
,
while the vertical axis is the direction of maximum variance orthogonal to .
If the projection matrix contains two or more columns the plot function
selects the two vectors along which the projected data exhibit the highest variance.
In the present case, because PDDP projects each data subset onto the first
principal component the vertical axis corresponds to the second principal component.
If the optional argument labels is not specified, red and blue colours are used to
indicate the observations assigned to the left and right child of the node,
as shown in the left sub-figure in Figure 5.1.
If this argument is specified then the cluster label determines
the colour of each point in the figure.
The user can also define the colour for each cluster, by specifying
a (k 3) matrix, whose i-th row is the RGB triplet used to colour
the i-th cluster.
Clearly the visualisation which uses the actual cluster labels to colour observations is very informative about how the actual clusters are partitioned at each level of the hierarchy. However, what is more important for unsupervised learning is that the visualisation of the cluster hierarchy without using the actual labels also allows the user to draw valuable insights about the validity of the binary partitions at each node. Such insights are crucial in the process of validating a clustering model, unless very strong assumptions about the types of distributions that give rise to the data are imposed. This issue will be explored further in Section 6, but for now we provide a few examples of insights that can be obtained from Figure 5.1:
The nplot method of the ctree class enables the visualisation of the binary partition at any node of the cluster hierarchy. This function takes as mandatory inputs an object of class ctree, and the number of the node to be visualised. It also accepts as optional arguments labels and colours. The data are projected in a two-dimensional space using the same approach as in the plot function described previously. Let's first consider the root node of the tree.
>> % Plot partition at root node of the cluster hierarchy >> nplot(t1,1); >> % Plot partition at root node of the cluster hierarchy using actual labels >> nplot(t1,1,labels);
 |
Figure 5.2 (even without the labels) illustrates that the first split of the data intersects a very dense region. The premise that underlies PDDP, that if there are two well separated clusters in the data then these will be separable along the first principal component, does not appear to be valid in this example.
When the clustering algorithm uses a hyperplane to bi-partition the data at each node, the nplot function also illustrates a kernel density estimator constructed from the projection of the data onto the vector orthogonal to the separating hyperplane (black line). The scale of this function is illustrated on the right vertical axis. If the true clusters labels are specified, as in the second sub-figure in Figure 5.2, then each cluster is assigned to the halfspace that contains the majority of its observations. The overall density can then be seen as a two component mixture arising from the clusters assigned to the two halfspaces. The red and blue dashed lines illustrate these two component densities. This visualisation is intended to highlight the extend to which the separating hyperplane splits clusters in the data. The fact that in Figure 5.2 the two densities overlap considerably is a clear indicator that this hyperplane is splitting clusters.
The success ratio is a measure of how effectively a binary partition separates at least one cluster from the rest, in datasets that contain two or more clusters [18]. This measure is always between zero and one, with higher values indicating better performance. To compute the success ratio for a specific binary partition we will use the information from the ctree object that stores the cluster hierarchy. To access a node of this object we can use the method get of the ctree class. Each node of the tree is a structured array. The idx element of this array contains the indices (row numbers in the data matrix X) of the observations allocated to this node. Observations allocated to the left child of a node have negative sign while those allocated to the right child have a positive sign. The code snippet below uses these properties to compute the success ratio at the root node.
>> % Get root node of cluster hierarchy >> node1 = t1.get(1); >> % Assess quality of binary partition through success ratio >> success_ratio(sign(node1.idx), labels)
It is possible to evaluate the success ratio at each node of the cluster hierarchy, using the method perf of the ctree class.
>> % Evaluate performance at each node of t1 >> t1 = perf(t1, labels)
The output of the above function is displayed on the terminal (but is too large to be presently included).
We next consider whether the splitting criterion used by dePDDP will improve the clustering result.
>> [idx2, t2] = depddp(X,10); Clusters: 1 2 3 4 Divisive process terminated because no cluster can be split further Clusters Identified: 4
The output above indicates that dePDDP did not identify 10 clusters. The algorithm fails to partition a cluster when the one-dimensional kernel density estimator constructed from the projection of the data onto the first principal component is unimodal. This is interpreted as an indication that the data belong to a single cluster.
Figure 5.3 illustrates the clustering model created by this algorithm, as well as the binary partition at the root node. From this figure we see why the algorithm failed to estimate 10 clusters and why the clustering model produced is not valid for this dataset. The one-dimensional data projection onto the first principal component always contains one or a few observations that are very distant from the rest. The estimated density has a very small mode around these observations and as a result at each bi-partition dePDDP splits one or a few outliers from the rest of the data. Around the bulk of the data the density estimator is unimodal.
A naive (and ineffective as we will see) approach to overcome this issue would be to impose a constraint on the minimum number of points in a cluster, by specifying the minsize option (available in all divisive hierarchical clustering algorithms in OPC).
>> [idx2, t2] = depddp(X,10,'minsize',10); Clusters: 1 Divisive process terminated because no cluster can be split further Clusters Identified: 1
The above message indicates that with a minimum cluster size of 10 the data cannot be split. This should not be surprising as we can see from Figure 5.3 that the density estimator has no local minima apart from the one at its left tail.
An important parameter in dePDDP is the bandwidth used in the density
estimator. By default dePDDP estimates the bandwidth
parameter,
, through the rule suggested by Silverman [22]
for the approximation of multimodal univariate densities,
is the standard deviation of the projected data.
The user can modify this by providing as input a function handle.
The associated function must take as input a data matrix and a structured array
containing the algorithm's parameters, and return a positive scalar. This function
is used to estimate the value of the bandwidth parameter for each cluster.
In the next code snippet we halve the value of the bandwidth.
>> % Define function handle for bandwidth selection (note 2nd input argument not used) >> fh = @(x,p)(0.45*size(x,1)^(-0.2)*std(x* pcacomp(x,1))); >> [idx2, t2] = depddp(X,10,'minsize',10, 'bandwidth', fh); Clusters: 1 2 3 4 5 6 7 8 9 10
dePDDP with these settings can estimate 10 clusters, but a visualisation of the clustering model produced (which is omitted for brevity) illustrates that this model does not overcome any of the previously identified problems.
The inspection of the clustering models produced by PDDP and dePDDP strongly suggests that for this dataset dimensionality reduction by projecting onto the first principal component is not appropriate. In the next section we explore algorithms that attempt to identify the optimal projection vector with respect to explicit clustering criteria.
First we consider divisive clustering algorithms obtained by recursively bi-partitioning the data through hyperplanes that are estimated by identifying the optimal one-dimensional data projection. Three such methods will be discussed. The Maximum Clusterability Divisive Clustering (MCDC) algorithm attempts to identify the one-dimensional projection that optimises variance ratio clusterability; a criterion connected to the k-means objective function. Normalised Cut Divisive Clustering (NCUTDC) recursively bi-partitions the data using hyperplanes that minimise the value of the normalised graph-cut criterion. The last method, Minimum Density Divisive Clustering (MDDC) attempts to identify the hyperplane along which the integral of the estimated density is minimised.
For methods based on separating hyperplanes, OPC also includes a separate implementation of the underlying binary segmentation algorithm. To distinguish between the two, the names of functions that produce a complete divisive clustering model end in dc, while those that perform a binary partition using a hyperplane as a cluster separator, end in h. For example, the MCDC algorithm is implemented in the mcdc function, while the mch function estimates maximum clusterability hyperplane(s).
The MCDC algorithm is implemented in the function mcdc.
>> [idx3,t3] = mcdc(X,10);
>> cluster_performance(idx3,labels)
ans =
struct with fields:
Purity: 0.7710
NMI: 0.7174
AdjRand: 0.6371
Vmeasure: 0.7174
>> plot(t3);
>> nplot(t3,1);
The clustering performance of this algorithm improves that of k-means applied on the full dimensional data, as well as that of k-means applied on the data projected onto the first 9 or 33 principal components.
It is important to note that the initialisation of the projection pursuit algorithm in MCDC is performed by applying 2-means on the data (subset) and computing the vector that connects the cluster centroids. Since by default kmeans in MATLAB and Octave uses the k-means++ algorithm [1], the output mcdc can differ in consecutive executions with identical input parameters.
The plot of the model hierarchy, and the first binary partition is provided in Figure 5.4. The figure shows that MCDC performs a much more sensible clustering, compared to PDDP and dePDDP. The visualisation of the binary partition at the root of the tree clearly shows that the projection pursuit algorithm has managed to identify a hyperplane that traverses a relatively sparse region and separates two dense clusters. This provides clear evidence of a clustering structure in the data which was not visible through PDDP and dePDDP (Figures 5.2 and 5.3, respectively). Inspecting the visualisation for the entire clustering model one observes that the majority of binary partitions at internal nodes appear to be separating effectively dense clusters. A number of leaves appear to contain more than one cluster and are natural candidates for further splitting. An extensive example of using the methods of the ctree class to validate and modify a clustering model is provided in Section 6.
We can examine whether an alternative initialisation would improve the final clustering model. In the example below we set the initial projection vector to be the first principal component. This is achieved by specifying the optional argument v0. For divisive hierarchical clustering algorithms this input argument must be set to a function handle. The associated function must accept two inputs: the data matrix, and a structured array containing the parameters of the algorithm.
>> % Function handle returns 1st PC
>> fh = @(x,p)(pcacomp(x,1));
>> [idx4,t4] = mcdc(X,10,'v0', fh);
>>
>> % Assess clustering performance
>> cluster_performance(idx4,labels)
ans =
struct with fields:
Purity: 0.7466
NMI: 0.6727
AdjRand: 0.5760
Vmeasure: 0.6727
This initialisation causes a small deterioration in clustering performance. The visualisation of the resulting clustering model in Figure 5.5 reveals that the resulting clusters are more balanced, but there still remain clear indications that some leaves of the hierarchy contain more than one cluster, and should therefore be split.
 |
We next produce a clustering model using the minimum Normalised Cut Divisive Clustering (NCUTDC) algorithm.
>> [idx5,t5] = ncutdc(X,10);
>>
>> % Assess clustering performance
>> cluster_performance(idx5,labels)
ans =
struct with fields:
Purity: 0.7810
NMI: 0.6950
AdjRand: 0.6200
Vmeasure: 0.6949
NCUTDC performs better than spectral clustering applied on the full-dimensional data, and the datasets obtained after projection onto the first 9 and 33 principal components. This indicates that the dimensionality reduction approach is enabling the algorithm to identify better quality clusters. The resulting cluster hierarchy is illustrated in Figure 5.6.
The interface of the mddc function is identical to the previous two functions, mcdc, and ncutdc. We thus thus directly execute the algorithm with the default settings
>> [idx6,t6] = mddc(X,10);
>>
>> % Assess clustering performance
>> cluster_performance(idx6,labels)
ans =
struct with fields:
Purity: 0.8110
NMI: 0.7716
AdjRand: 0.7054
Vmeasure: 0.7716
>> nplot(t6,2);
Figure 5.7 provides a visualisation of the binary partition at node 2 of
the cluster hierarchy. The dashed blue line in this figure corresponds to the projection
index for MDH, defined in Eq. (3.2). The scale of this function is
depicted on the right vertical axis.
Notice that is identical to the kernel density estimator (black solid line) within the range
of standard deviations around the mean, and increases abruptly outside this range.
The definition of the projection index in
Eq. (3.2) ensures that the minimiser is always
within standard deviations of the mean of the data.
A more extensive discussion of mddc is postponed until Section 6.
In this section we describe two algorithms that attempt to identify the optimal
linear subspace to perform spectral clustering: Dimensionality Reduction for
Spectral Clustering (DRSC), and Spectral Clustering Projection Pursuit (which
to retain the naming conventions in OPC we call Spectral Clustering Projection
Pursuit Divisive Clustering, SCPPDC).
Both are gradient-based algorithms that aim to minimise eigenvalue(s) of the
normalised graph Laplacian.
Unlike the divisive clustering algorithms discussed in previous sections
the two methods presented in this section are not limited to
one-dimensional projections and can be applied for any choice of the
dimensionality of the projection space, .
This enables these methods to identify clusters whose convex hulls
are not linearly separable.
Both DRSC and SCPPDC are computationally very expensive, because each function
evaluation involves the computation of the similarity
matrix,
, and its eigen-decomposition,
.
The gradient ascent scheme for DRSC optimises each column vector of
separately, which increases the computational cost by a factor of .
We will pre-process the data by micro-clustering before applying DRSC so that
the algorithm terminates within a reasonable time.
Micro-clustering [34] is effectively -means clustering using
a value of that is much larger than the expected number of clusters in
the data.
We will use 200 micro-clusters as recommended for SCPPDC to render the results
of the two algorithms comparable.
In [16] it
is suggested to select
through 10-fold cross-validation using as
performance measure the mean-squared error from the -means step (last step of
spectral clustering).
This approach is computationally very expensive. Instead at present we use
the bandwidth selection rule suggested in [7], and implemented
in the function scpp_def_sigma.
Finally, the dimensionality of the projection space, , needs to be set.
Following [16], the default setting for in drsc is
. We initialise DRSC using the first principal component vectors,
rather than a set of random orthonormal vectors.
We have found that this initialisation improves performance considerably
in the vast majority of cases.
The user can modify this parameter specifying the optional argument v0. Since
DRSC is a partitioning algorithm, v0 can be specified either as a function
handle (as before), or as a projection matrix (which is not allowed for
divisive algorithms).
When the optional argument v0 is set is determined by the
number of columns of the initial projection matrix.
>> % the next algorithm is very slow. set seed to ensure reproducibility
>> % without having to run all the code up to this point
>> % In Octave use randn('seed',x); and rand('seed',x)
>> rng(56789);
>> % micro-clustering
>> [d2c,centroids] = kmeans(X,200);
>>
>> % Set scale parameter for Gaussian kernel to SCPPDC recommendation
>> sigma = scpp_def_sigma(X);
>>
>> % Execute drsc
>> [idx7,W,fval,sumD] = drsc(centroids,10,sigma);
>>
>> % Assign cluster labels to observations using
>> % the cluster labels of the micro-clusters
>> idx7 = reverse_assign(idx7, d2c);
>>
>> cluster_performance(idx7, labels)
ans =
struct with fields:
Purity: 0.1181
NMI: 0.0585
AdjRand: 4.2323e-04
Vmeasure: 0.0274
DRSC terminates after exhausting the maximum number of iterations (the default
value for which is 50) without converging. A plot of the projection index after
each complete pass over all the columns of (contained in the third
output argument fval) indicates that the algorithm is not monotonically
improving the objective function.
The clustering quality of the identified solution is also poor.
Next we apply the SCPPDC algorithm on the optidigits dataset. The syntax
for this divisive hierarchical algorithm is identical to the previous
algorithms. The function scppdc uses all the default values recommended
in [7], and the user need only specify the data matrix and the
number of clusters.
A critical parameter for this algorithm (as for all
spectral clustering methods) is the choice of the scale parameter, , of
the Gaussian kernel that is used to compute pairwise similarities.
By default this parameter is set through the function scpp_def_sigma.
The user can modify this by setting the optional argument sigma
to a function handle. The associated function must accept as
arguments a data matrix and a structured array containing the parameters
of the algorithm.
Also very influential is the choice of the initial projection matrix.
In scppdc the projection matrix is initialised to the first two principal
components of the cluster being split.
The user can modify this by specifying the optional
argument v0. As in all divisive hierarchical algorithms, v0 must
be a handle to a
function that returns a projection matrix and accepts as inputs
the data matrix and a structured array containing all the parameters
of the algorithm.
>> rng(1098765);
>> [idx8, t8] = scppdc(X,10);
Clusters: 1 2 3 4 5 6 7 8 9 10
>> % Visualisation
>> plot(t8)
>> plot(t8,labels)
>> % Performance assessment
>> cluster_performance(idx8,labels)
ans =
struct with fields:
Purity: 0.8384
NMI: 0.7676
AdjRand: 0.7007
Vmeasure: 0.7676

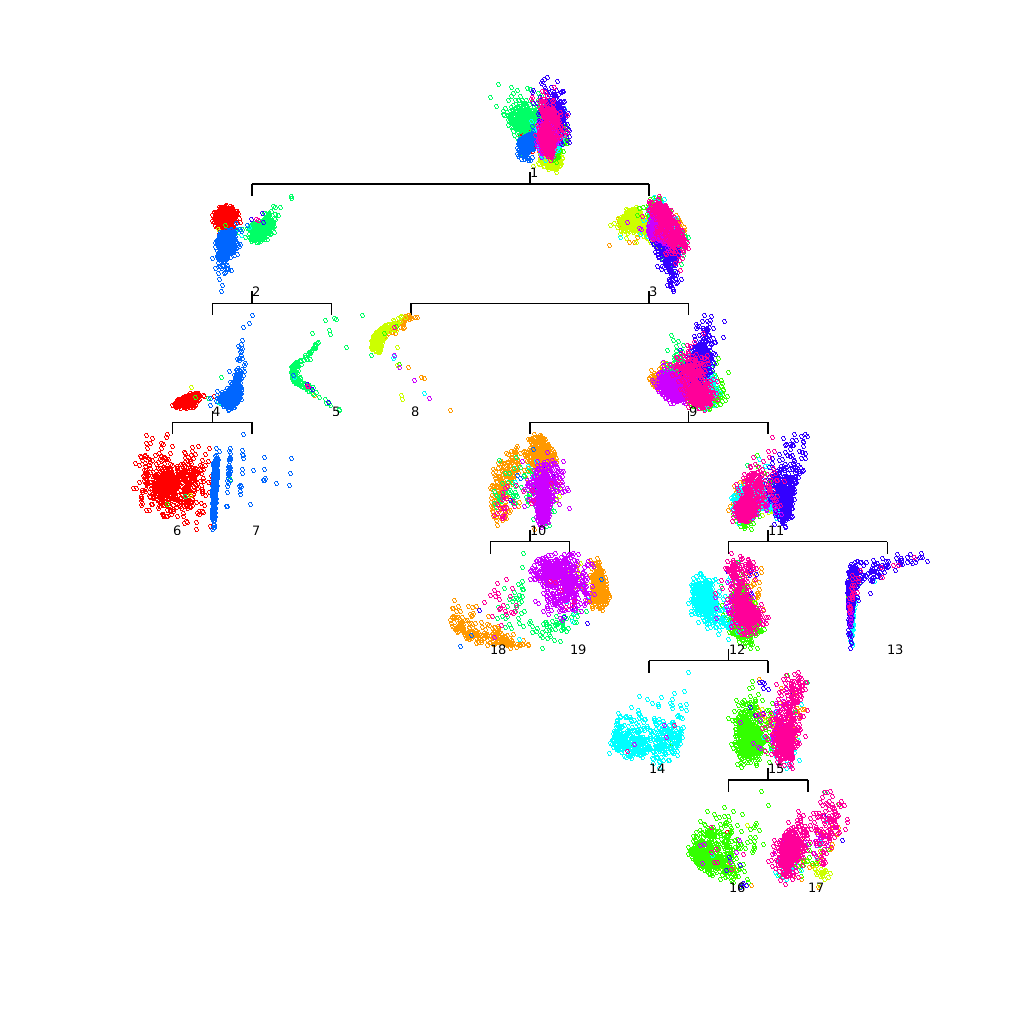

Figure 5.8 illustrates the cluster hierarchy produced by scppdc.
The only leaf node (cluster) that appears to contain more than one clusters is
the node with number 4. The second sub-figure in Figure 5.8
verifies that this impression is correct. It is also clear that the ability to
separate non-convex clusters in the two-dimensional projection space enhances
the performance of this algorithm.
This is verified by the cluster performance measures. SCPPDC achieves the
highest performance out of all the considered methods on this dataset, and
importantly improves substantially over spectral clustering applied on the full
dimensional dataset, as well as on data projected onto the first principal
components, and DRSC.
In this section we illustrate how to validate and modify a clustering model produced by any divisive hierarchical clustering algorithm in OPC. For partitioning algorithms, visualisation is straightforward using the projection matrix, and the in-build function plot and scatter in MATLAB and Octave. To modify the clustering model the user can set the optional input arguments, as discussed in the previous section.
The interactive validation and modification of divisive hierarchical models is
more challenging, and constitutes the focus in the remainder of this section.
In the present example we will use the optidigits dataset used in the
previous section, but assume that the actual number of clusters is unknown, and
start with an initial guess of
.
We use the mddc function to construct the initial cluster hierarchy, but
the interface we describe relies on methods of the ctree class and is
hence applicable to all divisive hierarchical clustering methods in OPC.
The functions for visualisation, plot and nplot have been discussed
extensively in the previous section. The two main functions for the
modification of a ctree object are prune and split.
>> rng(201800630);
>> load('datasets/optidigits.mat');
>>
>> % Cluster optidigits datasets assuming k=5
>> [idx,t] = mddc(X,5);
>> Visualise cluster hierarchy (plot not shown)
>> plot(t);
>> % Evidence of 3 well separated clusters

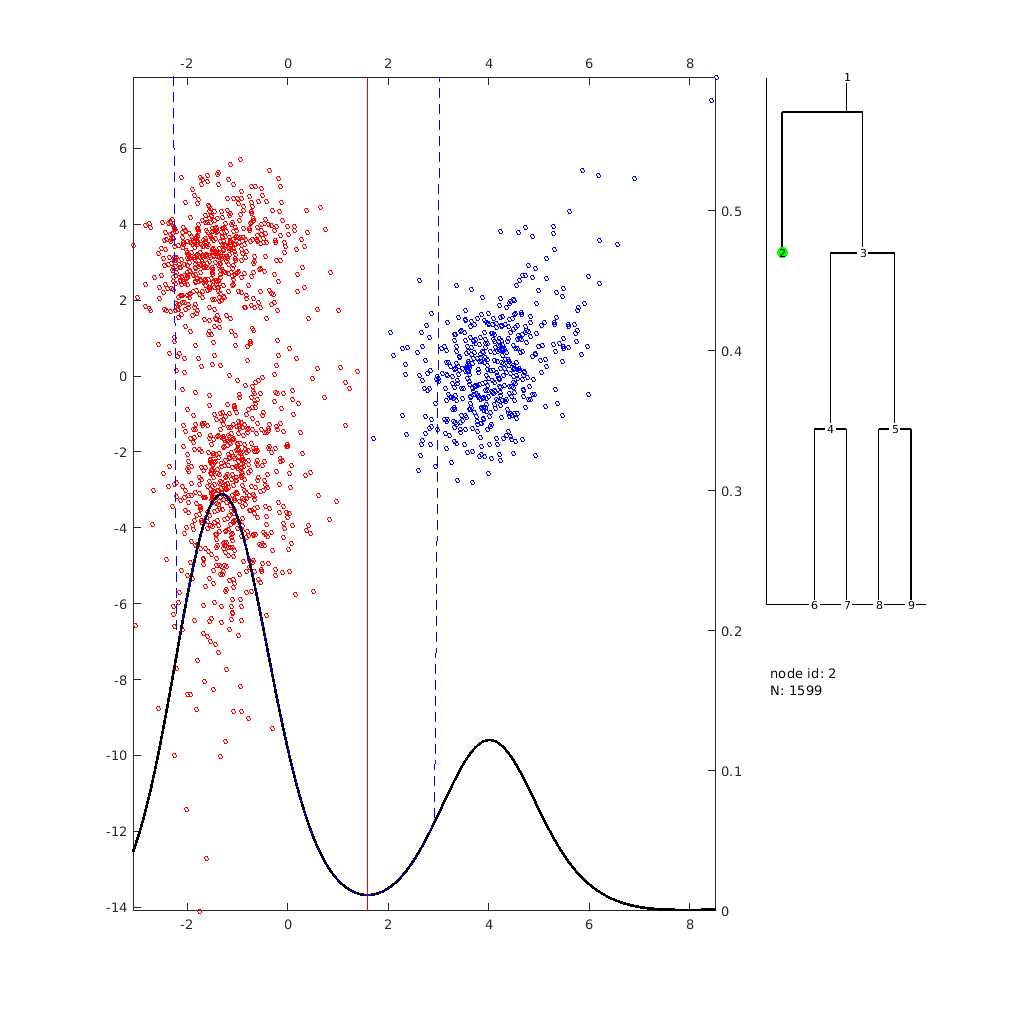

>> nplot(t,2);
>> % Hyperplane intersects dense area

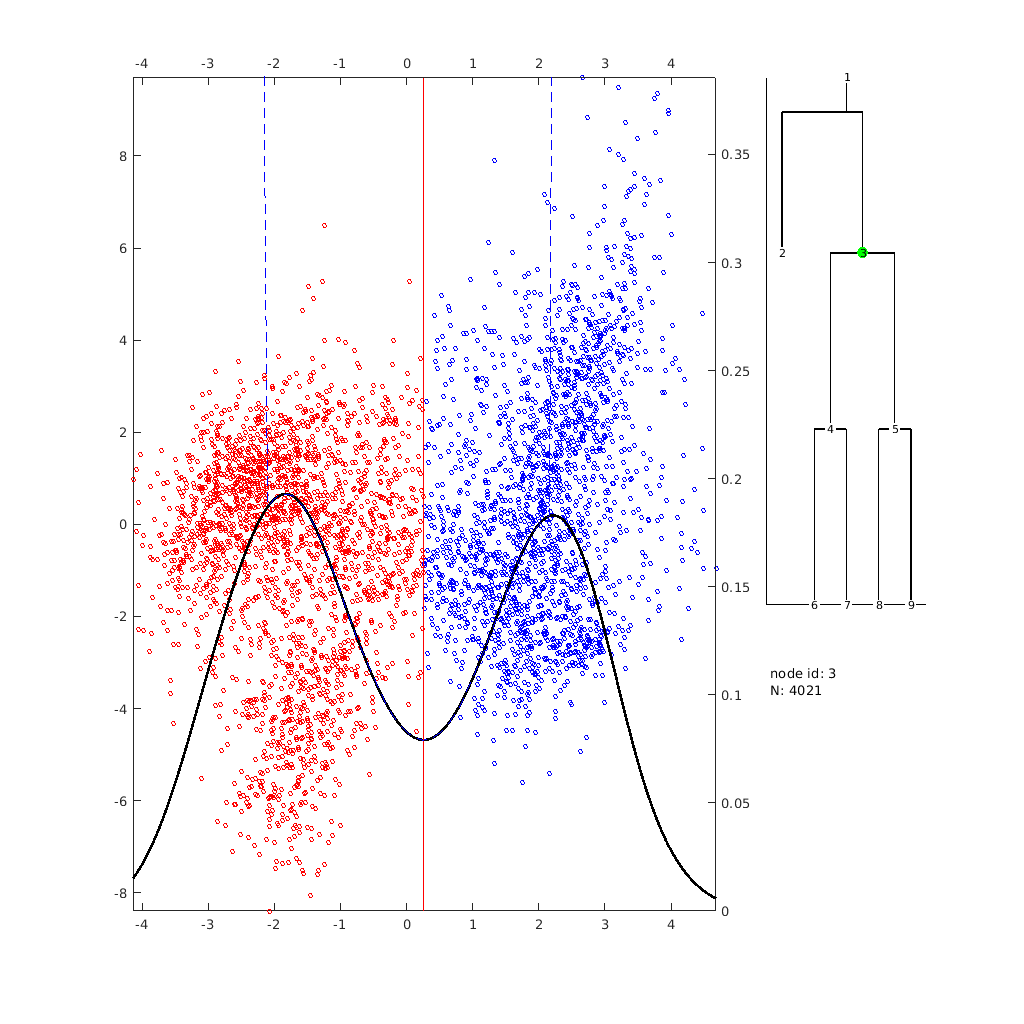

>> nplot(t,3);
An inspection of the cluster hierarchy (not shown for brevity), and the hyperplane separators in nodes 2 and 3 (shown in Figure 6.1), suggests that the leaf node 2, appears to contain 3 well separated dense clusters, while the hyperplane in node 3 intersects a dense region. The hyperplane separator for the cluster at node 2 appears to be effectively separating one of the three dense clusters. We can therefore use this hyperplane to split the cluster at node 2. This is achieved by calling the split function (method of the class ctree) with no optional arguments. If no optional arguments are specified, the split function partitions a leaf node using the binary separator estimated with the parameter settings used to create the first instance of the ctree object (in this example t). An inspection of the new leaf node with number 10 (omitted for brevity), illustrates that this cluster contains two of the three dense clusters identified in node 2, and that the MDH for this node separates these clusters effectively. We therefore split node 10 by calling the split function without specifying any arguments.
>> % Split cluster at leaf node 2 using estimated MDH >> t1 = split(t,2); >> % Plot omitted for brevity >> nplot(t1,10); >> % Split cluster at leaf node 10 using estimated MDH >> t1 = split(t1,10); >> % Visualise cluster hierarchy >> plot(t1);
 |
>> % Prune tree at node 3 >> t1 = prune(t1,3);

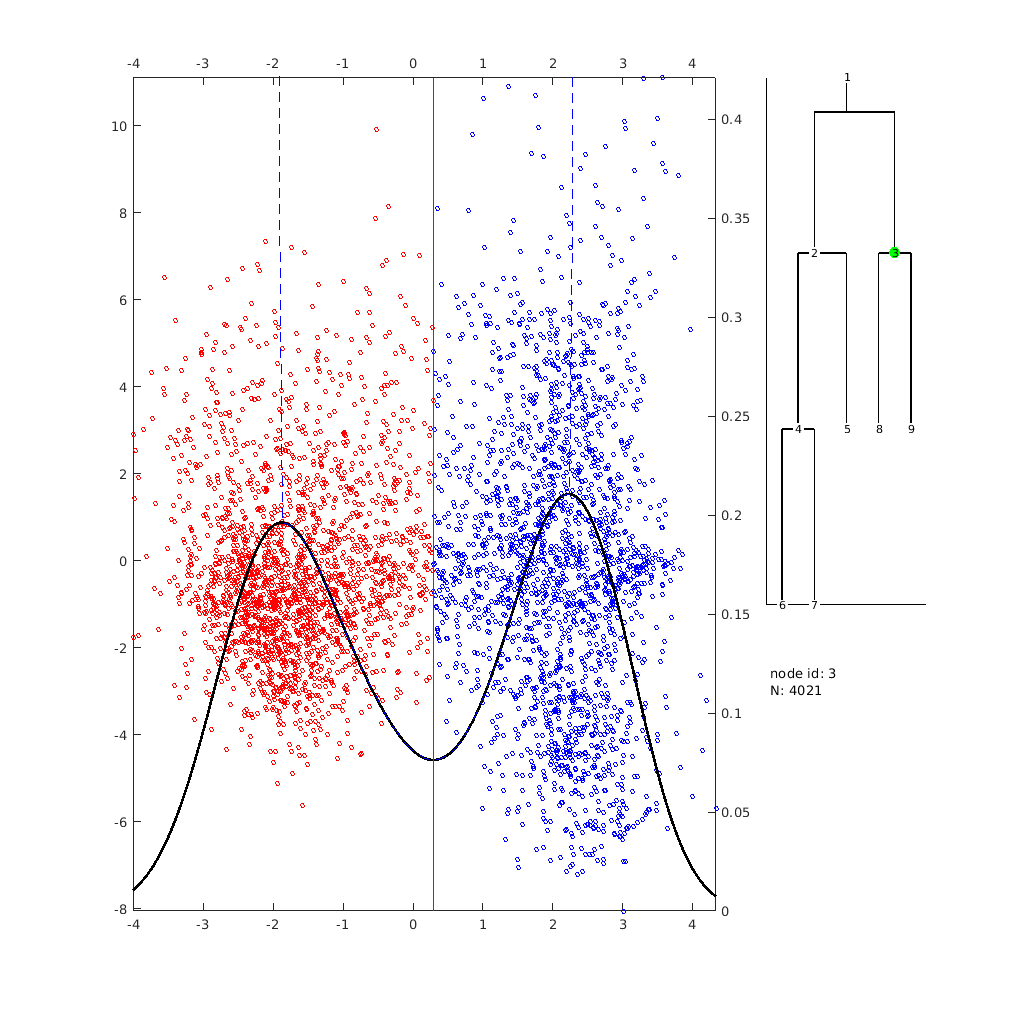

Having pruned the tree we next explore whether the cluster at node 3 can be partitioned more effectively. If we apply the split function on the cluster at node 3 we will obtain the same hyperplane as before. The split function accepts all the optional arguments (using the same syntax) of the divisive hierarchical clustering algorithm that created the first instance of the ctree object. In this example, we consider MDHs obtained by initialising the projection vector at the 2nd and 3rd principal component. To this end we need to set the v0 argument. In the code below we also set the verb argument to one to enable the visualisation of the progress of the algorithm. Monitoring the progress of the projection pursuit algorithm we observe that the most promising MDH is obtained for the initialisation at the third principal component. Using the default parameter settings the algorithm rejects this solution because it is outside the default range around the mean of the data. To overcome this we increase the maximum range by setting alphamax to 1.2 (from a default of one). Note in the second sub-figure in Figure 6.3 that the local minimiser along the projected density is very close to the boundary of the range of admissible MDHs (evident by the blue dashed line that illustrates the projection index, Eq. (3.2)).
>> % Consider alternative parameter settings for PP algorithm: >> % initialise at 2nd PC >> split(t1,3,'v0',@(x,p)(pcacomp(x,2)), 'verb',1); >> % initialise at 3rd PC, and increase range of admissible MDHs >> split(t1,3,'v0',@(x,p)(pcacomp(x,3)), 'alphamax',1.2, 'verb',1); >> % Update cluster hierarchy >> t1 = split(t1,3,'v0',@(x,p)(pcacomp(x,3)), 'alphamax',1.2);
 |
An inspection of the outcome of the revised clustering model indicates that both clusters arising from the split of node 3 are likely to contain more than one clusters. We first split the right child of node 3 and continue splitting clusters until no leaf exhibits evidence of containing more than one dense clusters. In the following, the default parameter values for the projection pursuit algorithm appear appropriate, so they are not modified. For brevity we omit the visualisations of the individual binary partitions in the following code snippet.
>> % Visualise and then split leaves that
>> % appear to contain more than one clusters
>> nplot(t1,9);
>> t1 = split(t1,9);
>> nplot(t1,11);
>> t1 = split(t1,11);
>> nplot(t1,12);
>> t1 = split(t1,12);
>> nplot(t1,15);
>> t1 = split(t1,15);
>> nplot(t1,10);
>> t1 = split(t1,10);
>>
>> % Assess performance
>> idx = tree2clusters(t1);
>> cluster_performance(idx, labels)
ans =
